23733 Datasheet: 10V 4.7uF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

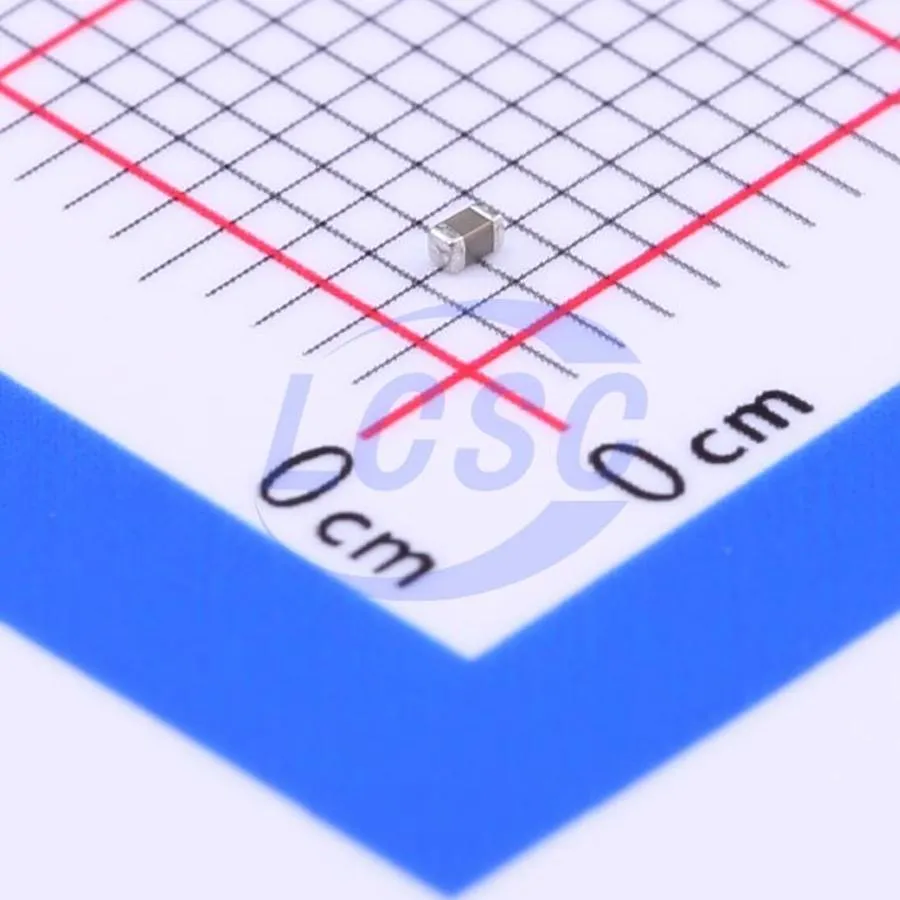

This is a high-capacitance 4.7uF multilayer ceramic capacitor (MLCC) housed in a compact 0402 (1005 metric) surface-mount package. Rated for a maximum working voltage of 10V, it utilizes an X5R dielectric which ensures reliable performance across a standard industrial temperature range. Its primary advantage is the high volumetric efficiency, providing significant charge storage within an extremely small footprint for space-constrained designs. It is an essential component for power supply decoupling and noise filtering in modern portable electronics like smartphones and tablets.
10V 4.7uF X5R ±20% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 10V
- Operating Temperature: -55°C to +85°C
Starting at
$0.0051556
✨ Key Features
Compact 0402 (1.0 x 0.5 mm) footprint; High capacitance value of 4.7uF; X5R temperature characteristics (±15% capacitance change); Nickel (Ni) inner electrodes with Tin (Sn) plating for excellent solderability; Fully RoHS and REACH compliant.
🎯 Applications
Power supply decoupling and bypass in mobile devices; Smoothing for DC-DC converters; High-frequency noise suppression; General digital circuit filtering in wearables and IoT devices.
⚡ Electrical Characteristics
Capacitance: 4.7uF; Tolerance: ±20% (M code); Dielectric: X5R; Rated Voltage: 10V DC (P code); Dissipation Factor: High-capacitance series characteristic.
⚠️ Absolute Maximum Ratings
Maximum Rated Voltage: 10V DC; Operating Temperature: -55°C to +85°C; Storage Temperature: -55°C to +85°C.
🔌 Pinout & Connection Diagram
2-terminal Surface Mount Device (SMD). Symmetric termination for non-polarized installation on 0402 land patterns.
🔄 Equivalent & Alternative Components
- Murata GRM155R61A475ME15
- TDK C1005X5R1A475M050BC
- Taiyo Yuden LMK105BJ475MV-F
❓ Frequently Asked Questions
What does the X5R dielectric code signify?
X5R indicates that the capacitor can operate from -55°C to +85°C with a maximum capacitance variation of ±15% over that range.
Is this capacitor polarized?
No, like most ceramic capacitors, this MLCC is non-polarized and can be mounted in either direction on the PCB.
Can this 10V capacitor be used for a 5V power rail?
Yes, it is common and recommended practice to use a capacitor with a voltage rating higher than the circuit voltage to account for DC bias effects and safety margins.
