16772 Datasheet: 16V 220nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics
This is a high-performance 220nF Multilayer Ceramic Capacitor (MLCC) from Samsung Electro-Mechanics, utilizing an X7R dielectric for stable operation. Housed in a compact 0402 (1005 metric) surface-mount package, it is rated for a maximum operating voltage of 16V. Its primary advantage lies in its balance of high capacitance density and thermal stability, making it reliable for critical filtering tasks. The component is fully RoHS and REACH compliant, ensuring suitability for modern environmentally-conscious manufacturing.

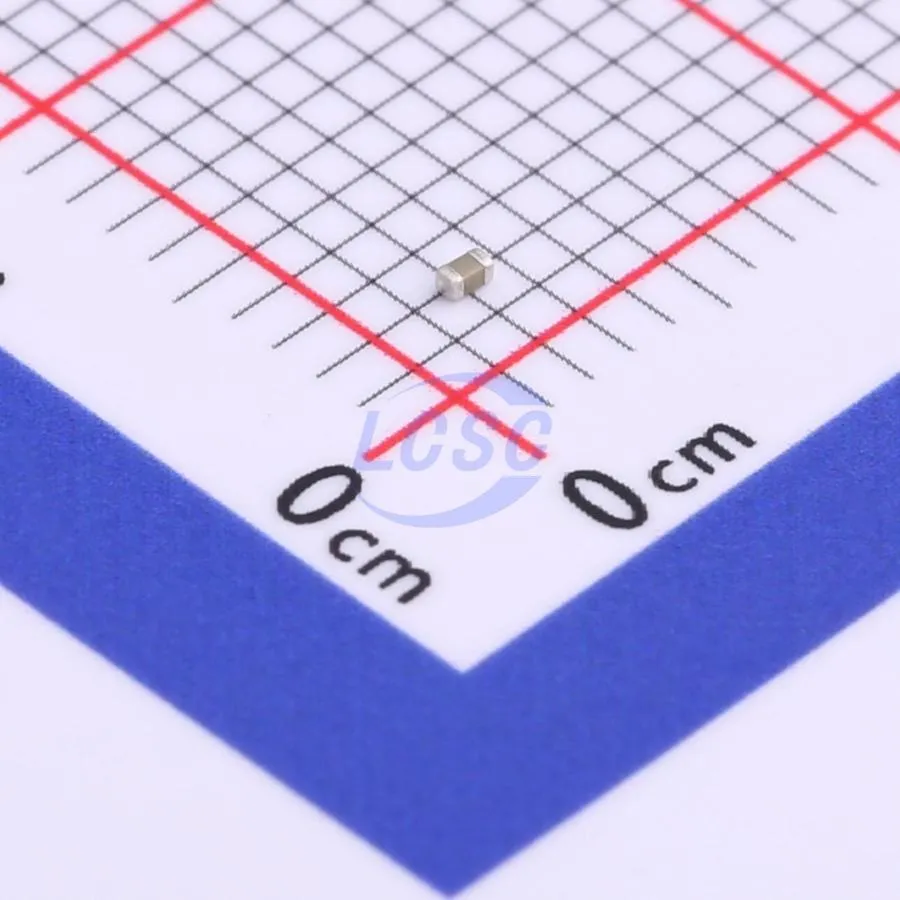

16V 220nF X7R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 16V
- Operating Temperature: -55°C to +125°C
Starting at
$0.003763
✨ Key Features
X7R temperature-stable dielectric (±15% capacitance change); Compact 0402 (1005 metric) footprint; Ni/Cu/Ni/Sn termination structure for superior solderability; Lead-free and halogen-free construction; High reliability for general-purpose applications.
🎯 Applications
Bypass and decoupling in digital circuits; Filtering in DC-DC converters; Noise suppression in telecommunications equipment; Consumer electronics such as smartphones and tablets.
⚡ Electrical Characteristics
Capacitance: 220nF (0.22µF); Tolerance: ±10% (K code); Rated Voltage: 16V DC (O code); Dielectric: X7R (Class II); Dissipation Factor: Standard for X7R series.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 16V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Two-terminal surface mount device (SMD). Non-polarized design allowing for bi-directional mounting on the PCB.
🔄 Equivalent & Alternative Components
- Murata GRM155R71C224KA12
- TDK C1005X7R1C224K
- KEMET C0402C224K4RACTU
- Taiyo Yuden EMK105BJ224KV-F
❓ Frequently Asked Questions
Is this capacitor polarized?
No, MLCCs are non-polarized components and can be installed in either orientation on a circuit board.
What is the meaning of the X7R dielectric code?
X7R indicates a Class II dielectric that operates from -55°C to +125°C with a maximum capacitance variation of ±15% over that range.
Can I use this 16V capacitor in a 12V power rail?
Yes, but it is standard engineering practice to leave a safety margin (typically 20-50%). A 16V rating is acceptable for a 12V rail, though a 25V part might offer better long-term reliability against transients.
