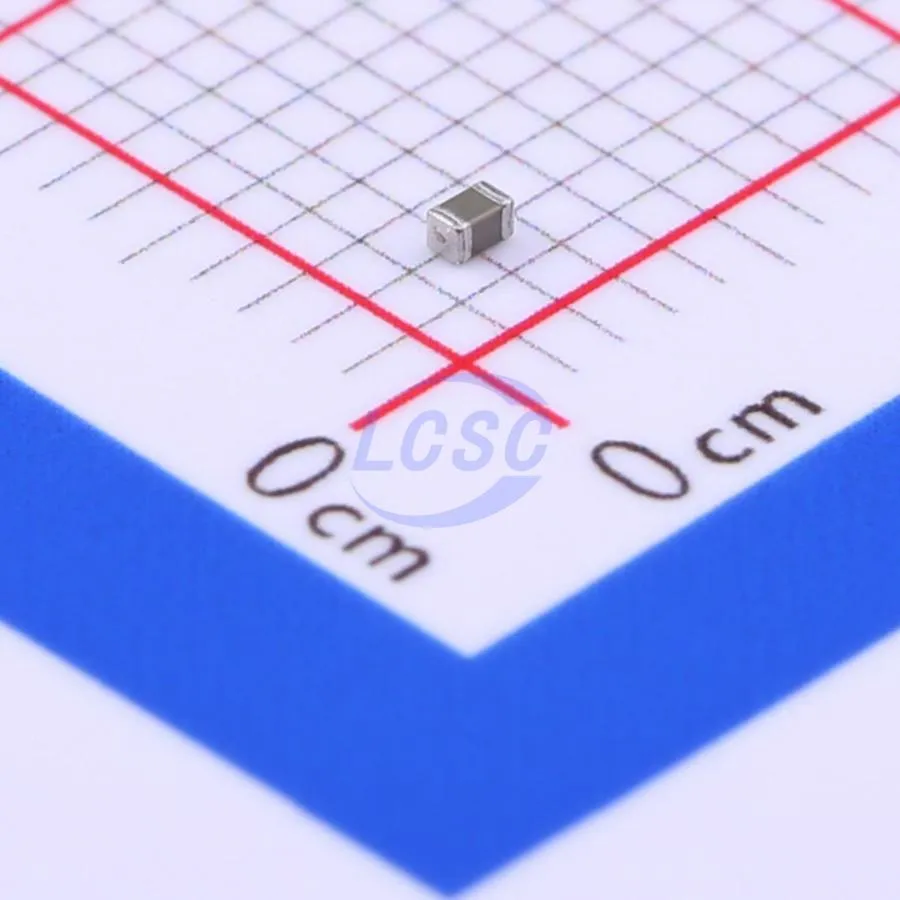

This Samsung CL05A106MQ5NUNC is a high-density 10µF Multilayer Ceramic Capacitor (MLCC) optimized for compact electronic designs. Housed in a tiny 0402 (1005 metric) package, it utilizes an X5R dielectric to maintain stable performance over a broad temperature range of -55°C to +85°C. With a rated voltage of 6.3V and a ±20% capacitance tolerance, it provides excellent decoupling and filtering in low-voltage circuits. Its main advantage lies in achieving a high capacitance-to-volume ratio, making it ideal for space-constrained mobile and portable applications.
10uF 6.3V X5R ±20% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 6.3V
- Operating Temperature: -55°C to +85°C
Starting at
$0.0059852
✨ Key Features
10µF capacitance in a miniature 0402 (1.0 x 0.5 mm) footprint; X5R dielectric for temperature stability; 6.3V DC rated voltage; Low ESR and ESL characteristics; Lead-free (RoHS compliant) Ni/Sn plated termination; High reliability with excellent moisture and heat resistance.
🎯 Applications
Bypass and decoupling in mobile phones, tablets, and wearables; Input and output filtering in DC-DC converters; Power management circuit smoothing; High-frequency noise suppression in digital electronics; General-purpose consumer electronics.
⚡ Electrical Characteristics
Nominal Capacitance: 10µF ±20% (at 1kHz ±10%, 0.5±0.1Vrms); Dissipation Factor (Tan δ): 0.125 max (Initial); Insulation Resistance (IR): 50MΩ·µF or 10,000MΩ min (whichever is smaller).
⚠️ Absolute Maximum Ratings
Rated Voltage (VDC): 6.3V; Dielectric Withstanding Voltage: 250% of rated voltage for 1-5 seconds; Operating Temperature Range: -55°C to +85°C.
🔌 Pinout & Connection Diagram
Mechanical dimensions: L=1.00±0.20mm, W=0.50±0.20mm, T=0.50±0.20mm; Termination width (BW): 0.25±0.10mm. Non-polarized SMD structure for flexible mounting orientation.
🔄 Equivalent & Alternative Components
- Murata GRM155R60J106ME44
- TDK C1005X5R0J106M050BC
- Taiyo Yuden JMK105BJ106MV-F
❓ Frequently Asked Questions
Is this capacitor polarized?
No, as an MLCC (Multilayer Ceramic Capacitor), this component is non-polarized and can be soldered onto the PCB in any orientation.
What is the peak temperature for soldering?
The recommended reflow peak temperature is 260±5°C for a duration of up to 30 seconds.
How does the capacitance change with temperature?
The X5R dielectric maintains capacitance within ±15% of its nominal value over the temperature range of -55°C to +85°C.
