15195 Datasheet: 50V 10nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

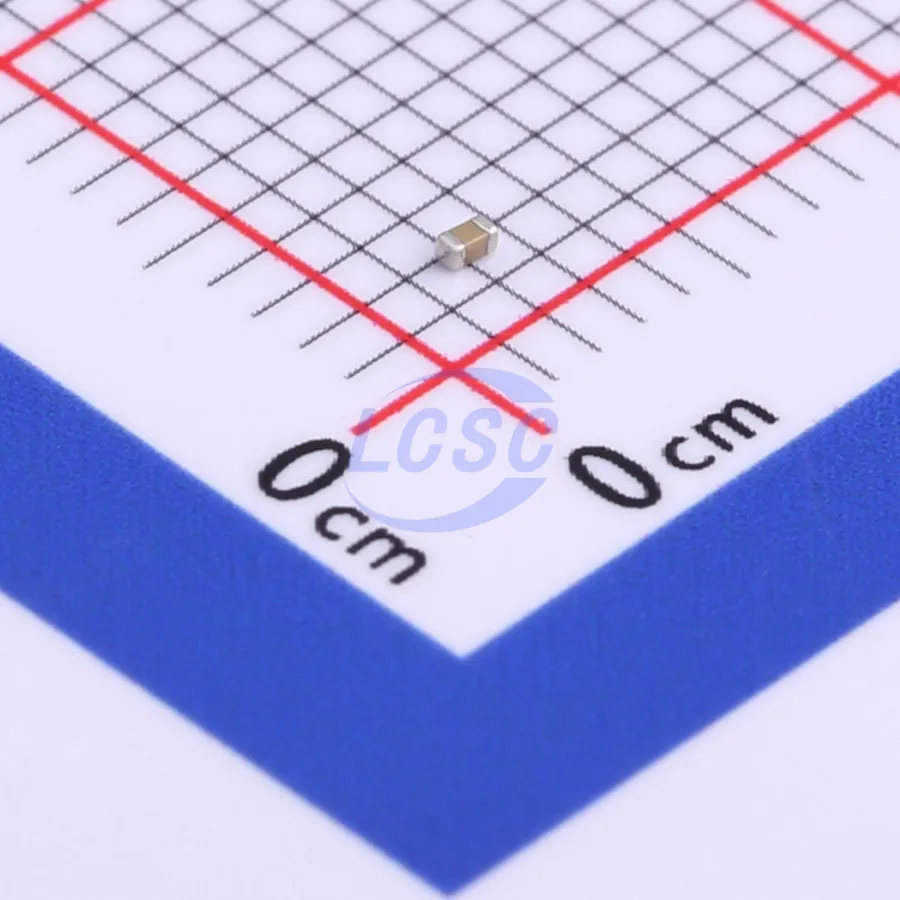

This is a high-performance 10nF Multilayer Ceramic Capacitor (MLCC) in a compact 0402 surface-mount package. Rated for 50V, it utilizes a Class II X7R dielectric, which offers a predictable and stable capacitance change over a broad temperature range. This component is an essential building block for modern electronics, providing reliable decoupling and noise suppression in space-constrained designs. Its robust construction ensures longevity and performance stability, making it superior to Class III dielectrics for precision timing or filtering applications.
10nF 50V X7R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ X7R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ X7R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Max Current (Imax): Not specified
- Max Power (Pmax): Not specified
- Operating Temperature: -55°C to +125°C
Starting at
$0.0013037
✨ Key Features
Compact 0402 (1005 metric) footprint; Stable X7R temperature coefficient (±15%); High reliability multilayer construction; Ni/Sn termination for superior solderability; Fully RoHS and REACH compliant; Low ESR and ESL for high-frequency performance.
🎯 Applications
Power supply decoupling and bypass; DC-DC converter input/output filtering; Signal smoothing in consumer electronics; Automotive infotainment and telematics; High-frequency noise suppression in mobile devices.
⚡ Electrical Characteristics
Nominal Capacitance: 10nF (10,000pF); Capacitance Tolerance: ±10% (K-code); Dielectric: X7R; Voltage Coefficient: Rated at 50V DC; Dissipation Factor: Typically < 2.5%; Insulation Resistance: Typically > 10 GΩ or 500 MΩ·µF (whichever is less).
⚠️ Absolute Maximum Ratings
Rated Voltage (VDC): 50V; Dielectric Withstanding Voltage: 250% of rated voltage; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Standard 2-terminal SMD package. Non-polarized terminals. End termination 1: Cu/Ni/Sn. End termination 2: Cu/Ni/Sn.
🔄 Equivalent & Alternative Components
- Murata GRM155R71H103KA88
- TDK C1005X7R1H103K050BB
- Kemet C0402C103K5RACTU
- Taiyo Yuden UMK105BJ103KV-F
❓ Frequently Asked Questions
Is this capacitor polarized?
No, MLCCs are non-polarized components and can be installed in either orientation on the PCB.
What happens if the operating temperature exceeds 125°C?
Operating beyond the rated temperature range can lead to significant capacitance loss, reduced insulation resistance, and potential permanent dielectric breakdown.
Can I use this 50V capacitor on a 5V rail?
Yes, using a higher voltage rated capacitor on a lower voltage rail is generally beneficial as it reduces the DC-bias aging effect and provides greater safety margin.
