14441 Datasheet: 50V 68pF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

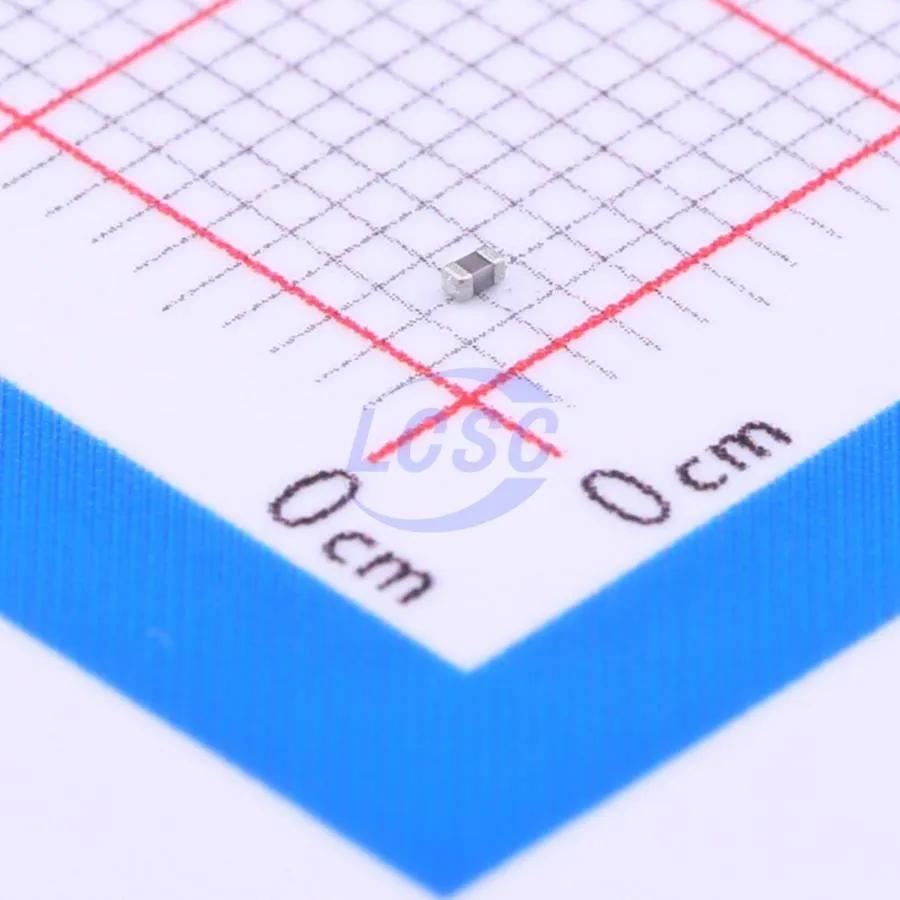

The 50V 68pF C0G capacitor is a high-performance multilayer ceramic capacitor (MLCC) in a compact 0402 surface-mount package. Utilizing the C0G (NP0) dielectric, it offers exceptional stability with near-zero capacitance drift across a wide temperature range and varying voltages. This component is designed for precision applications requiring low losses and high reliability, such as resonant circuits and high-frequency filtering. Its low equivalent series resistance (ESR) and inductance (ESL) make it suitable for maintaining signal integrity in high-speed circuits. RoHS compliance ensures it meets modern environmental standards for global electronic manufacturing.
50V 68pF C0G ±5% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Max Current (Imax): Not specified
- Max Power (Pmax): Not specified
- Operating Temperature: -55°C to +125°C
Starting at
$0.0042667
✨ Key Features
Ultra-stable Class 1 dielectric (C0G/NP0), Low ESR and Low ESL, High reliability, RoHS and REACH compliant, Lead-free and Halogen-free construction.
🎯 Applications
High-frequency filtering, decoupling, timing circuits, resonant circuits (oscillators), and impedance matching in telecommunications and consumer electronics.
⚡ Electrical Characteristics
Capacitance: 68pF; Tolerance: ±5% (J code); Rated Voltage: 50V DC; Dielectric: C0G; Dissipation Factor: Very low (standard for C0G).
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 50V; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Standard 2-terminal SMD (Surface Mount Device) package. Terminals consist of Ni/Cu/Ni barrier with Sn 100% plating for excellent solderability.
🔄 Equivalent & Alternative Components
- Murata GRM1555C1H680JA01D
- TDK C1005C0G1H680J050BA
- KEMET C0402C680J5GACTU
- AVX 04025A680JAT2A
❓ Frequently Asked Questions
What is the benefit of using C0G dielectric over X7R?
C0G (NP0) is a Class 1 dielectric that provides superior stability. It does not exhibit capacitance change with applied voltage or temperature, making it ideal for precision and high-frequency applications where stability is critical.
Is this component suitable for high-speed digital circuits?
Yes, its low ESR and ESL characteristics make it excellent for high-speed decoupling and signal filtering where parasitic inductance must be minimized.
What does the 0402 size indicate?
The 0402 code refers to the physical dimensions in inches, approximately 0.04 x 0.02 inches (or 1.0 x 0.5 mm in metric units, often referred to as 1005).
