1594 Datasheet: 50V 150pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)
The 150pF 50V X7R 0603 Multilayer Ceramic Capacitor (MLCC) is a high-reliability passive component optimized for surface-mount technology (SMT). It features a robust monolithic structure that ensures stable performance and excellent resistance to soldering heat during reflow or wave soldering. With its X7R dielectric, the capacitor maintains high stability across a broad temperature range of -55°C to +125°C, making it ideal for demanding environments. This component is particularly well-suited for high-voltage DC circuits, including DC-DC converters, modems, and lighting ballasts, where it helps improve overall circuit performance. Its compact 0603 size allows for high-density integration in modern electronic designs while adhering to RoHS environmental standards.

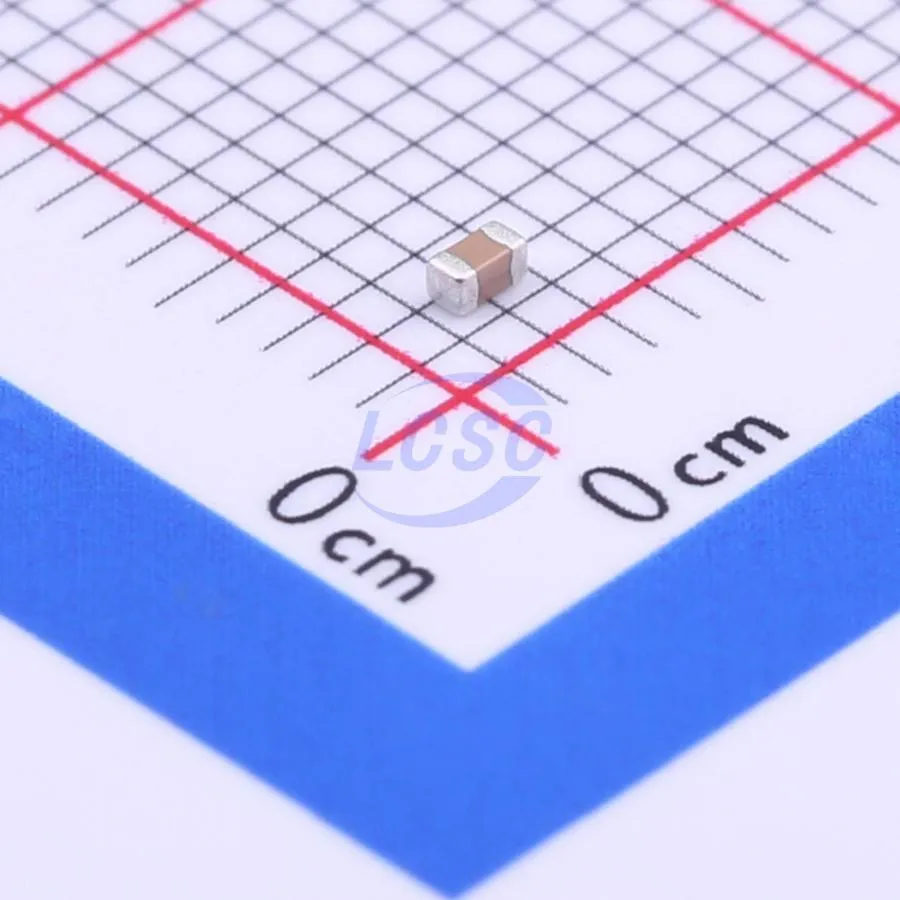

150pF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0026074
✨ Key Features
Monolithic structure for high reliability; Excellent soldering ability and heat resistance; High and stable capacitance; Suitable for SMT reflow and peak soldering; Compliant with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modems; LAN/WAN interfaces; Lighting ballast circuits; Voltage multipliers; DC-DC converters; Back-lighting inverters.
⚡ Electrical Characteristics
Capacitance: 150pF; Capacitance Tolerance: ±10%; Dielectric: X7R (Class II); Temperature Coefficient: ±15% max change over temperature range.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Dielectric Withstanding Voltage: Typically 2.5x rated voltage for low voltage series.
🔌 Pinout & Connection Diagram
Standard 0603 (1608 Metric) SMD package; 2-terminal non-polarized design; Dimensions: 1.6mm x 0.8mm (typical for 0603 footprint).
🔄 Equivalent & Alternative Components
- Murata GRM188R71H151KA01D
- TDK C1608X7R1H151K080AA
- Samsung CL10B151KB8NNNC
❓ Frequently Asked Questions
Is this capacitor polarized?
No, Multilayer Ceramic Capacitors (MLCCs) are non-polarized components and can be installed in either direction within a circuit.
What does the X7R dielectric code indicate?
X7R indicates a temperature-stable dielectric that operates from -55°C to +125°C with a maximum capacitance change of ±15% over that range.
What soldering methods are recommended for this 0603 MLCC?
This component is designed with excellent soldering resistance and is suitable for both reflow soldering and peak (wave) soldering processes.
