1588 Datasheet: 50V 1nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

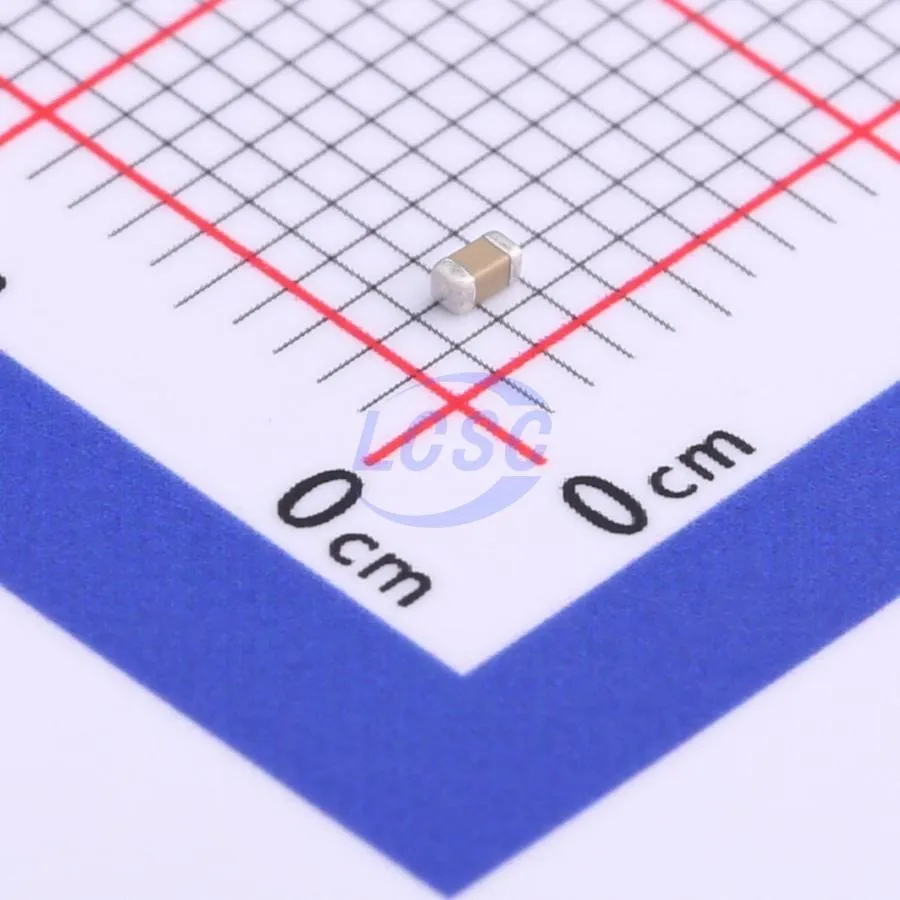

The 1nF MLCC is a high-performance surface-mount ceramic capacitor utilizing the stable X7R dielectric material. It is designed to operate reliably up to 50V DC within a compact 0603 (1608 metric) footprint. The X7R characteristic ensures that capacitance remains within a ±15% variation over a broad temperature spectrum from -55°C to +125°C. This component is ideal for general-purpose applications such as decoupling, bypass, and filtering in various electronic systems. Its robust construction with Ni/Sn terminations ensures excellent solderability and long-term reliability.
1nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0027556
✨ Key Features
Compact 0603 (1608 metric) package; Stable X7R dielectric; 1nF (1000pF) capacitance; ±10% tolerance; 50V DC rated voltage; Highly reliable multilayer electrode structure; Ni/Sn termination for lead-free soldering; RoHS and REACH compliant.
🎯 Applications
Power supply decoupling and bypass; Noise suppression in digital and analog circuits; Signal coupling in communication equipment; Smoothing in DC-DC converters; General-purpose electronics for consumer and industrial use.
⚡ Electrical Characteristics
Capacitance: 1nF; Tolerance: ±10% (K code); Rated Voltage: 50V (B code); Dielectric: X7R; Dissipation Factor: 2.5% max; Insulation Resistance: 10 GΩ minimum or 500 MΩ·µF.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Standard 2-terminal Surface Mount Device (SMD). Terminal 1: External Electrode (Ni/Sn plated); Terminal 2: External Electrode (Ni/Sn plated). Non-polarized design allows for bi-directional mounting.
🔄 Equivalent & Alternative Components
- Murata GRM188R71H102KA01D
- TDK C1608X7R1H102K080AA
- AVX 06035C102KAT2A
- Yageo CC0603KRX7R9BB102
❓ Frequently Asked Questions
What does the X7R dielectric code mean?
X7R is a Class II dielectric that provides moderate temperature stability. It allows for a maximum capacitance change of ±15% over the temperature range from -55°C to +125°C.
Can this capacitor be used in AC circuits?
While primarily designed for DC applications like decoupling, it can handle small AC signals within its rated voltage; however, self-heating and voltage derating should be considered for high-frequency power applications.
Is this component non-polarized?
Yes, Multilayer Ceramic Capacitors (MLCCs) are non-polarized, meaning they can be installed on a PCB in either orientation without affecting performance.
