307331 Datasheet: 50V 100nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics
This 100nF multilayer ceramic capacitor (MLCC) is designed in a compact 0402 surface-mount package, making it ideal for high-density circuit boards. Utilizing the stable X7R dielectric, it maintains consistent capacitance across a wide temperature range from -55°C to +125°C. With a 50V rating and ±10% tolerance, it serves as a reliable component for decoupling, bypass, and filtering applications. Its primary advantage is the balance between miniaturization and high-performance stability, ensuring signal integrity in demanding environments. The component is fully compliant with RoHS and REACH environmental standards.
100nF 50V X7R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Max Current (Imax): N/A (Passive component)
- Operating Temperature: -55°C to +125°C (X7R)
Starting at
$0.0039556
✨ Key Features
Compact 0402 (1005 metric) size; stable X7R dielectric; nickel barrier with 100% tin (Sn) plating for excellent solderability; RoHS and REACH compliant; lead-free and halogen-free construction; high reliability for general-purpose applications.
🎯 Applications
Bypass and decoupling in consumer electronics; signal filtering in communication equipment; noise suppression in power supply circuits; general-purpose circuit protection; high-density PCB designs where space is critical.
⚡ Electrical Characteristics
Capacitance: 100nF (104); Rated Voltage: 50V (Code B); Tolerance: ±10% (Code K); Dielectric: X7R (Class II); Termination: Ni/Cu/Ni/Sn plating.
⚠️ Absolute Maximum Ratings
Rated Voltage (WVDC): 50V; Operating Temperature Range: -55°C to +125°C; Capacitance Change with Temperature (TCC): ±15% max within operating range.
🔌 Pinout & Connection Diagram

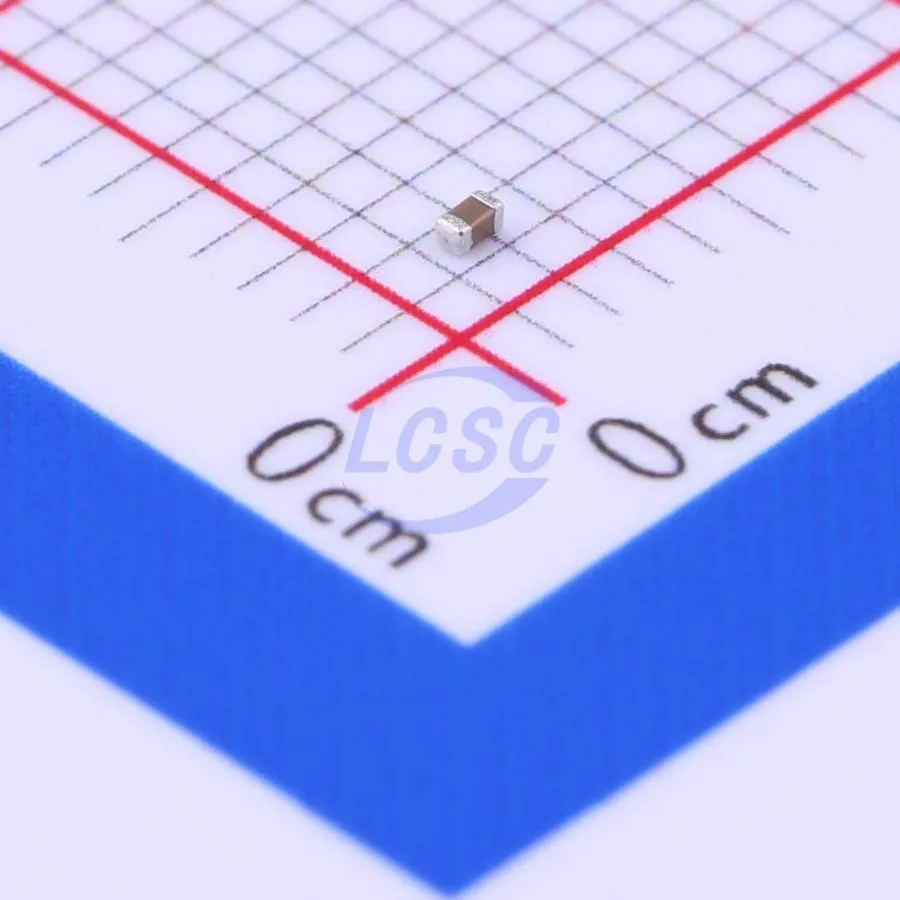

Mechanical Dimensions: The 0402 package is a 2-terminal surface-mount device with dimensions of approximately 1.00mm x 0.50mm. It features a non-polarized design with two symmetric end-terminations consisting of a nickel barrier layer and tin plating, allowing for bi-directional mounting on PCB solder lands.
🔄 Equivalent & Alternative Components
- Murata GRM155R71H104KE14
- TDK C1005X7R1H104K050BB
- KEMET C0402C104K5RACTU
- AVX 04025C104KAT2A
❓ Frequently Asked Questions
What does the X7R dielectric signify?
X7R indicates a Class II dielectric with a temperature range of -55°C to +125°C and a maximum capacitance change of ±15% over that range, providing better stability than Y5V or X5R.
Is this capacitor polarized?
No, MLCCs are non-polarized components and can be installed in either orientation on the PCB.
Can I use this 50V capacitor in a 12V circuit?
Yes, it is recommended to use a capacitor with a voltage rating higher than the operating voltage to account for DC bias effects and ensure long-term reliability.
