52923 Datasheet: 25V 1uF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

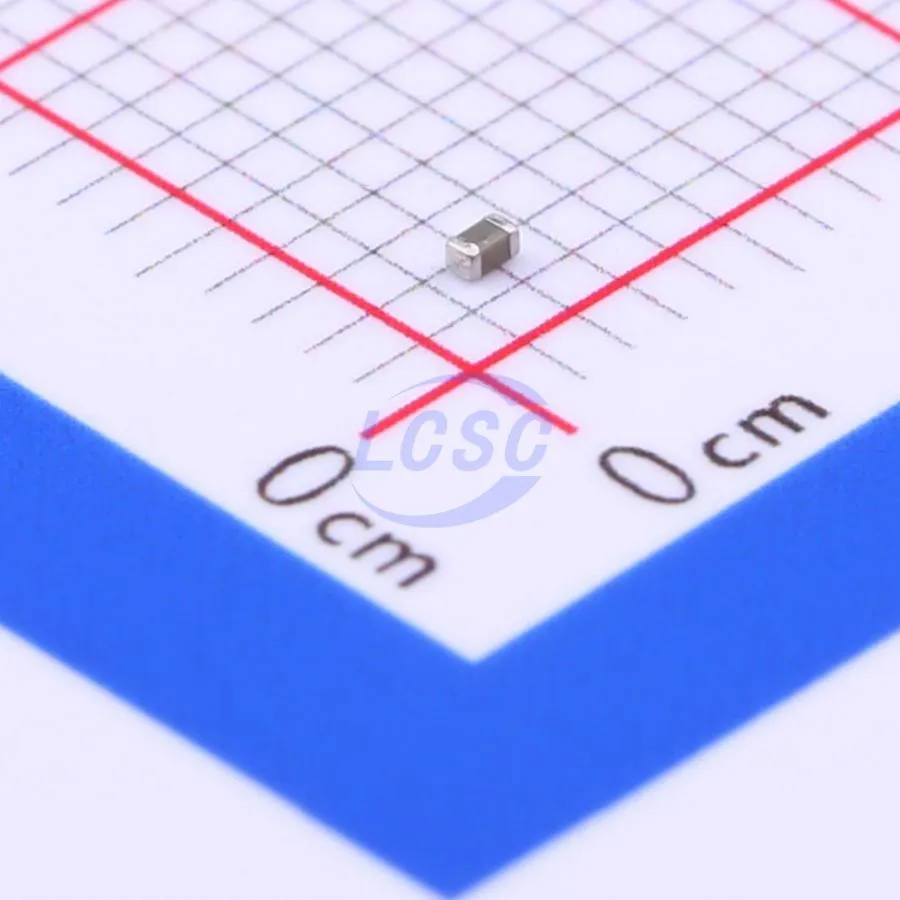

This 1uF Multilayer Ceramic Capacitor (MLCC) is a high-density passive component housed in a compact 0402 (1005 metric) surface-mount package. Utilizing an X5R dielectric, it provides a stable capacitance-to-volume ratio with an operating temperature range of -55°C to +85°C. It is specifically designed for high-frequency decoupling and smoothing applications in space-constrained electronic circuits. Its main advantage is the high capacitance value achieved in an ultra-miniature footprint, allowing for significant PCB space savings. This makes it an ideal choice for modern portable devices like smartphones, tablets, and DC-DC converter modules.
1uF 25V X5R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ X5R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ X5R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 25V
- Operating Temperature: -55°C to +85°C
Starting at
$0.0037481
✨ Key Features
Compact 0402 (1005 metric) size; High 1uF capacitance; Stable X5R temperature characteristics; RoHS and REACH compliant; Ni/Sn plated terminations for excellent solderability.
🎯 Applications
Power supply decoupling, Bypass filtering, DC-DC converters, Mobile handsets, and general digital circuit noise suppression.
⚡ Electrical Characteristics
Capacitance: 1uF; Voltage Rating: 25V DC; Tolerance: ±10% (K code); Dielectric: X5R (Class II); Dissipation Factor: Typical for high-capacitance MLCCs.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 25V; Operating Temperature Range: -55°C to +85°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
2-terminal Surface Mount Device (SMD). Non-polarized. Both terminals are interchangeable for soldering to the PCB pads.
🔄 Equivalent & Alternative Components
- Murata GRM155R61E105KA12D
- TDK C1005X5R1E105K050BC
- AVX 04023D105KAT2A
- Samsung CL05A105KA5NNNC
❓ Frequently Asked Questions
Is this capacitor polarized?
No, Multilayer Ceramic Capacitors (MLCCs) are non-polarized components and can be mounted in either direction on the PCB.
What happens if the operating temperature exceeds 85°C?
As an X5R dielectric, the performance is only guaranteed up to 85°C. Exceeding this may result in significant capacitance loss and potential reliability issues; for higher temperatures, an X7R dielectric is recommended.
