47339 Datasheet: 10V 470nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

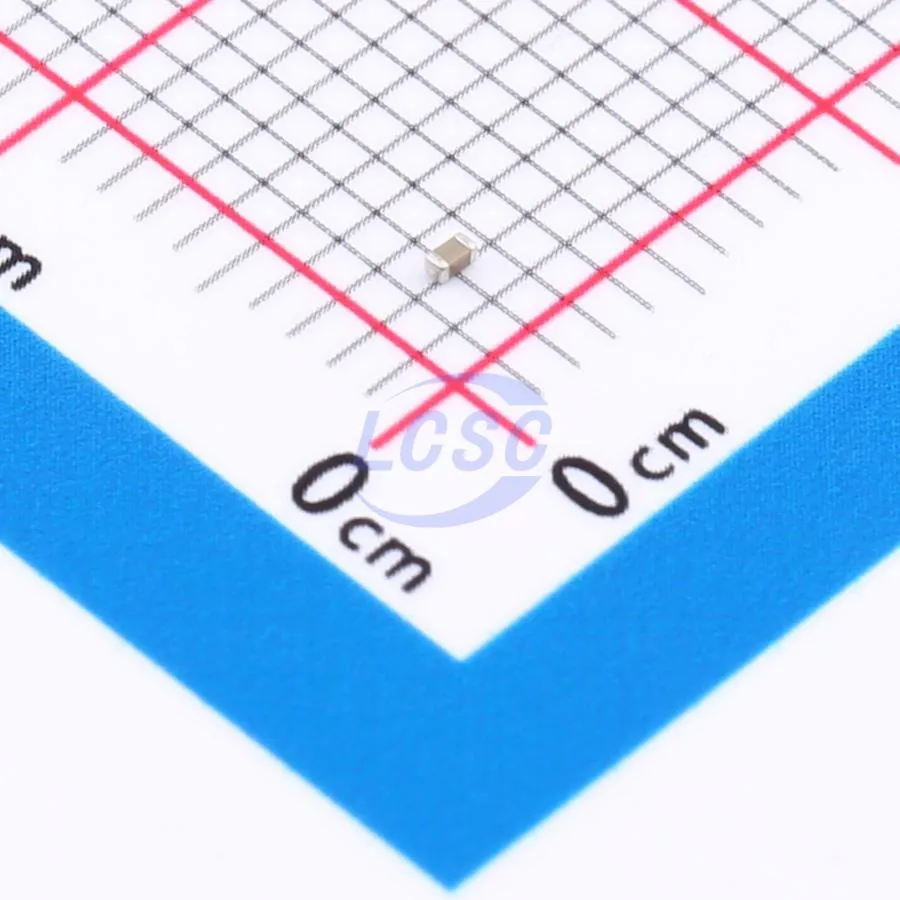

This 470nF Multilayer Ceramic Capacitor (MLCC) is housed in a compact 0402 (1005 metric) surface-mount package, optimized for high-density electronic assemblies. Utilizing a Class II X5R dielectric, it provides a high capacitance-to-volume ratio with a stable ±15% capacitance change over its operating temperature range. Rated at 10V with a ±10% tolerance, it is a reliable choice for power supply decoupling and noise filtering in portable electronics. The component features a nickel barrier and tin plating for superior solderability and is fully RoHS and REACH compliant. Its small footprint and performance make it an essential building block for modern smartphones and IoT devices.
10V 470nF X5R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ X5R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ X5R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 10V
- Operating Temperature: -55°C to +85°C
Starting at
$0.0050074
✨ Key Features
Compact 0402 (1005 metric) footprint; High capacitance density (470nF); Stable X5R dielectric performance; ±10% capacitance tolerance; Ni/Sn termination for robust soldering; RoHS and REACH compliant.
🎯 Applications
Power supply decoupling and bypass; Output filtering for DC-DC converters; Noise suppression in digital circuits; Smoothing for low-voltage rails in mobile devices; General-purpose consumer electronics.
⚡ Electrical Characteristics
Capacitance: 470nF (0.47 µF); Rated Voltage: 10V DC; Dielectric: X5R (Class II); Tolerance: ±10%; Dissipation Factor: Standard for high-capacitance MLCCs.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 10V DC; Operating Temperature Range: -55°C to +85°C; Storage Temperature: -55°C to +125°C (unmounted).
🔌 Pinout & Connection Diagram
2-terminal SMD/SMT non-polarized package; Dimensions: 1.00mm x 0.50mm (0402 inch / 1005 metric).
🔄 Equivalent & Alternative Components
- Murata GRM155R61A474KE01
- TDK C1005X5R1A474K050BB
- Taiyo Yuden LMK105BJ474KV-F
- KEMET C0402C474K8PACTU
❓ Frequently Asked Questions
Does this capacitor have a polarity?
No, MLCCs are non-polarized components and can be installed in either direction on the PCB.
What does the X5R dielectric code signify?
X5R indicates an operating temperature range of -55°C to +85°C with a maximum capacitance variation of ±15% over that range.
Can I use this capacitor in a 12V circuit?
No, the rated voltage (Vmax) is 10V. Using it at 12V exceeds the manufacturer’s safety limits and may lead to component failure.
