32949 Datasheet: 50V 10pF Capacitor – Samsung Electro-Mechanics

Component 32949

Capacitors — Manufactured by Samsung Electro-Mechanics

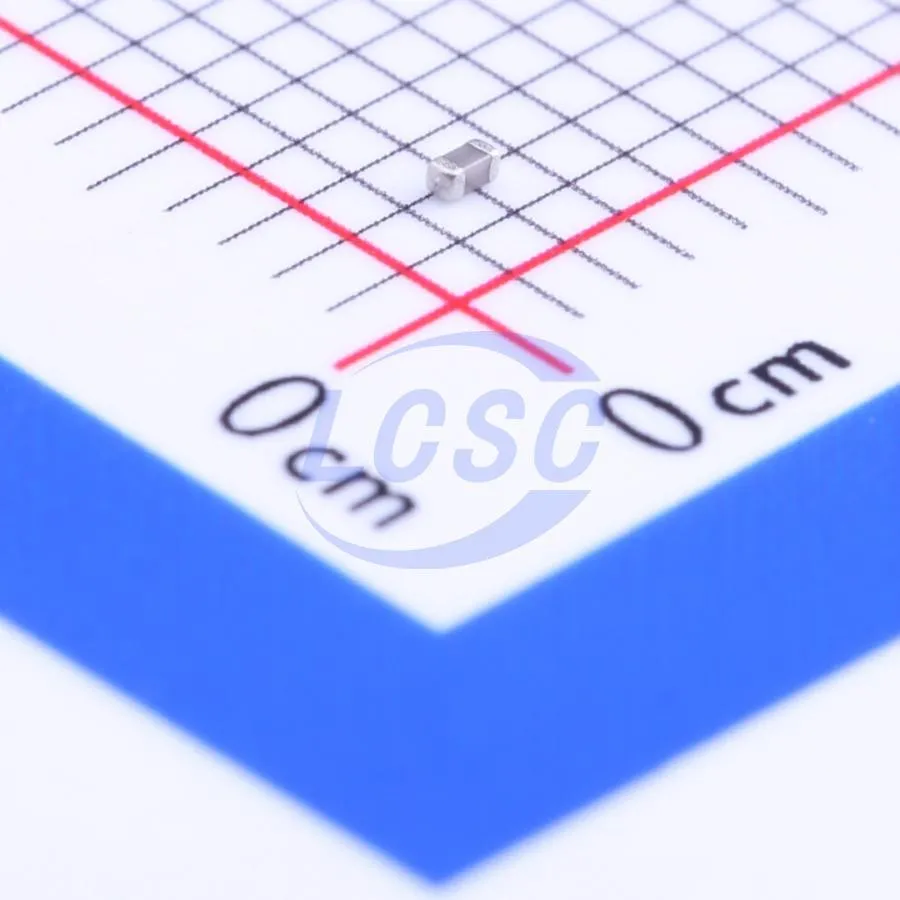

This component is a precision 10pF Multilayer Ceramic Capacitor (MLCC) utilizing a C0G (NP0) dielectric, which provides superior stability against temperature changes and DC bias. It is rated for 50V and comes in a standard 0402 (1005 metric) SMD package, making it suitable for high-density circuit designs. The primary advantage of this capacitor is its extremely low loss and linear performance, making it an excellent choice for high-frequency filtering and resonant circuits. Its robust construction ensures long-term reliability in demanding electronic environments. Furthermore, it is fully compliant with RoHS and REACH environmental regulations.

10pF 50V C0G ±5% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS

📦 0402
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
  • Max Voltage (Vmax): 50V
  • Operating Temperature: -55°C to +125°C
Starting at

$0.0041333

🛒 Buy on JLCPCB

✨ Key Features

Ultra-stable C0G (NP0) dielectric; Zero capacitance drift over temperature and voltage; Compact 0402 (1005 metric) SMD package; Low ESR and ESL for high-frequency performance; Lead-free and RoHS/REACH compliant.

🎯 Applications

High-frequency resonance circuits; Precision timing and oscillator circuits; RF matching and decoupling; Signal filtering and bypass in telecommunications and consumer electronics.

⚡ Electrical Characteristics

Capacitance: 10pF; Rated Voltage: 50V DC; Dielectric: C0G (NP0); Tolerance: ±5% (J code); High Q factor with very low dissipation factor.

⚠️ Absolute Maximum Ratings

Maximum Operating Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Dielectric Withstanding Voltage: Typically 250% of rated voltage.

🔌 Pinout & Connection Diagram

2-terminal Surface Mount Device (SMD). Non-polarized. Terminal 1: Connection A, Terminal 2: Connection B (Symmetrical terminals).

🔄 Equivalent & Alternative Components

  • Murata GRM1555C1H100JA01
  • TDK C1005C0G1H100J050BA
  • Taiyo Yuden UMK105CG100JV-F
  • KEMET C0402C100J5GACTU

❓ Frequently Asked Questions

What is the benefit of a C0G dielectric over X7R?

C0G (also known as NP0) offers much higher stability; its capacitance does not change significantly with temperature, time, or applied DC voltage, unlike X7R which can lose significant capacitance under load.

Is this capacitor polarized?

No, MLCCs are non-polarized components and can be installed in either direction on the PCB.

What does the 0402 size indicate?

0402 is the EIA package size code, indicating dimensions of approximately 0.04 inches by 0.02 inches (1.0 mm x 0.5 mm in metric 1005).
