1595 Datasheet: 50V 1.5nF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

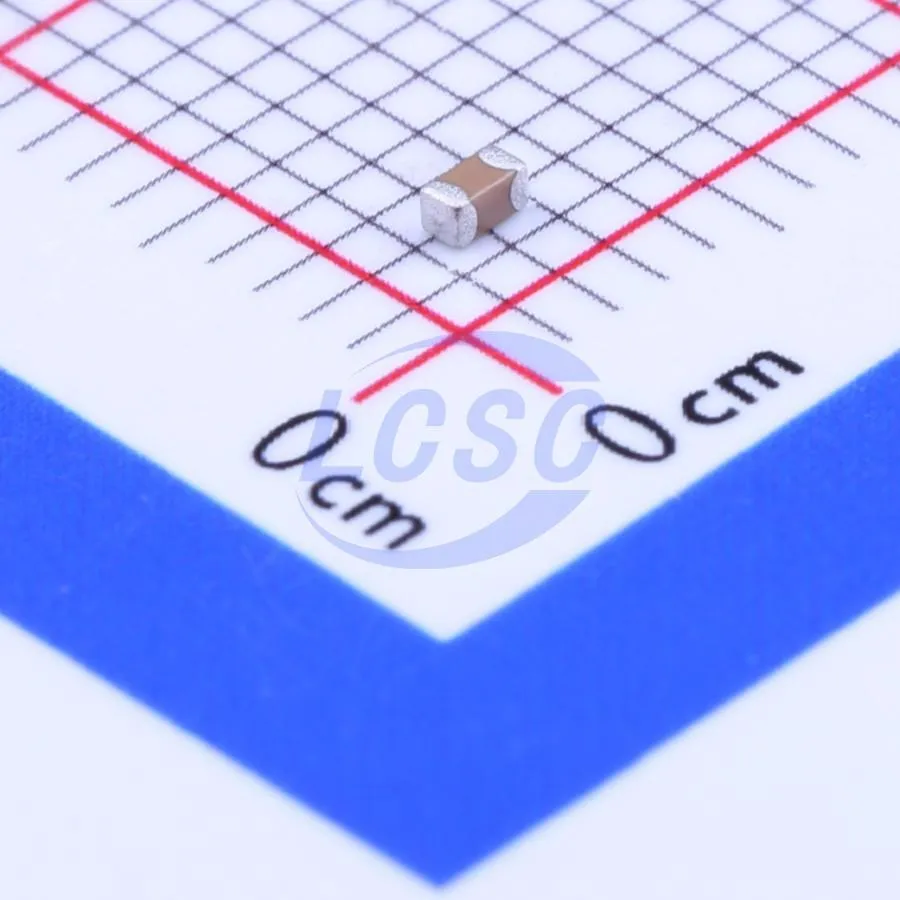

This 0603 surface-mount multilayer ceramic capacitor (MLCC) provides a stable 1.5nF capacitance with an X7R dielectric, making it ideal for bypass and decoupling in temperature-varying environments. Its monolithic laminated structure ensures high mechanical reliability and consistent electrical performance across its operating range. Designed for high-reliability applications, it supports both reflow and wave soldering processes, facilitating versatile manufacturing integration. The component is particularly valued for its balance of compact size and robust voltage handling in power management and signal conditioning circuits.
1.5nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0027111
✨ Key Features
Monolithic laminated structure for enhanced reliability; excellent solderability and resistance to soldering heat; compatible with reflow and wave soldering; stable capacitance characteristics; compact 0603 SMD form factor; manufactured according to GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modems; LAN/WAN interface circuits; lighting ballast and starter circuits; voltage multiplier circuits; DC-DC converters; back-lighting inverters.
⚡ Electrical Characteristics
Capacitance: 1.5nF; Rated Voltage: 50V; Dielectric: X7R; Tolerance: ±10%; Temperature Coefficient: ±15% max change from -55°C to +125°C.
⚠️ Absolute Maximum Ratings
Operating Temperature Range: -55°C to +125°C; Rated DC Voltage: 50V; Dielectric Withstanding Voltage: Typically tested at 250% of rated voltage for low-voltage series (standard industry practice for 50V MLCCs).
🔌 Pinout & Connection Diagram
2-terminal SMD (Non-polarized).
🔄 Equivalent & Alternative Components
- Murata GRM188R71H152KA01
- Samsung CL10B152KB8NNNC
- TDK C1608X7R1H152K
- KEMET C0603C152K5RACTU
❓ Frequently Asked Questions
What is the advantage of the X7R dielectric used in this capacitor?
X7R is a Class II temperature-stable dielectric. It allows for a higher capacitance density than Class I (like C0G) while maintaining a predictable capacitance change of no more than ±15% over the wide temperature range of -55°C to +125°C.
Can this capacitor be used in AC circuits?
While primarily designed for DC applications like filtering and decoupling, it can be used in AC circuits provided the peak voltage does not exceed the 50V DC rating and self-heating due to ripple current is managed.
Is this component compatible with automated SMT assembly?
Yes, its 0603 package and monolithic structure are specifically designed for high-speed Surface Mount Technology (SMT) placement and are compatible with standard reflow and wave soldering profiles.
