1596 Datasheet: 50V 15nF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

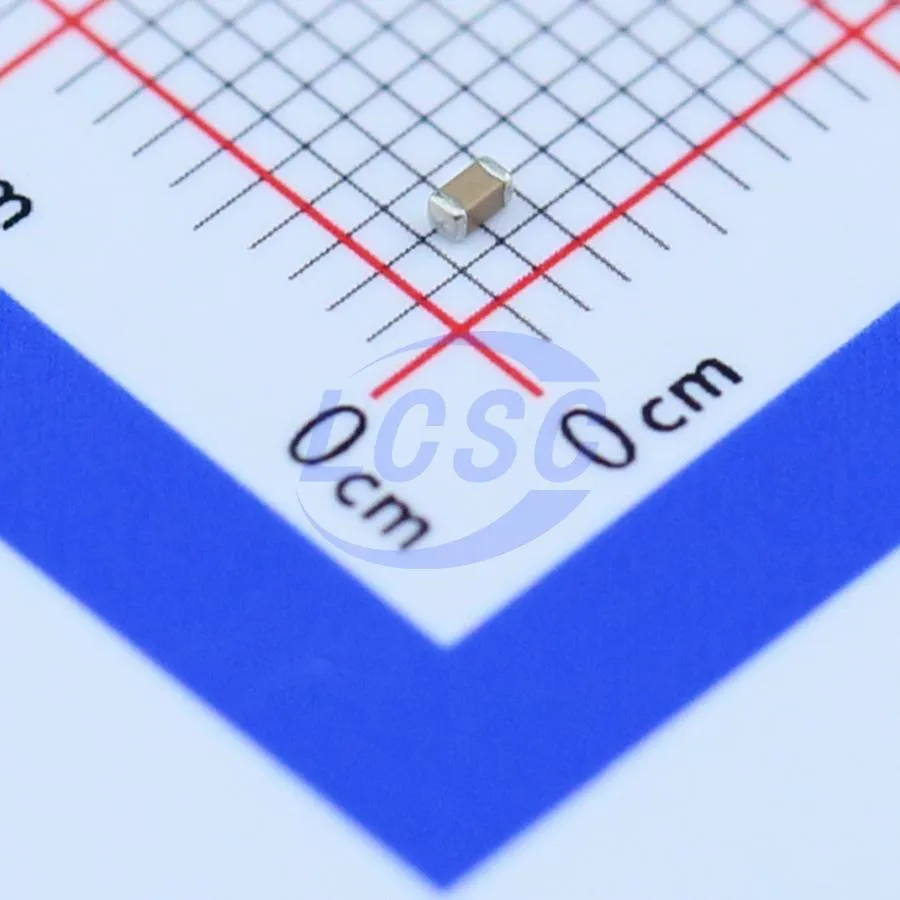

This 15nF multilayer ceramic capacitor (MLCC) is housed in a compact 0603 SMD package and utilizes a high-performance X7R dielectric for superior thermal stability. Rated at 50V, it features a robust monolithic laminated structure that ensures high reliability in modern high-density electronic assemblies. The component is specifically engineered to withstand rigorous soldering processes, including both reflow and peak wave soldering. Its primary advantage is providing stable capacitance and low parasitic effects, making it an essential choice for filtering, bypassing, and decoupling in various power and signal integrity applications.
15nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC) – X7R
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC) – X7R
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0043407
✨ Key Features
Specialized high-voltage reliability design; Robust monolithic laminated structure for enhanced durability; Excellent soldering ability and heat resistance for reflow and wave processes; Highly stable capacitance across the operating temperature range; Compliant with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modem signal conditioning; LAN/WAN network interface protection; Lighting ballast and starter circuits; Voltage multiplier stages in power supplies; DC-DC converter input/output filtering; Back-lighting inverter circuits.
⚡ Electrical Characteristics
Nominal Capacitance: 15nF; Rated Voltage: 50V DC; Dielectric Material: X7R (Class II); Capacitance Tolerance: ±10%; Dissipation Factor: Typically ≤ 2.5%; Insulation Resistance: ≥ 10GΩ or 500MΩ·μF (whichever is less).
⚠️ Absolute Maximum Ratings
Maximum Operating DC Voltage: 50V; Operating Temperature Range: -55°C to +125°C; Storage Temperature: -55°C to +125°C; Dielectric Withstanding Voltage: 2.5x rated voltage for 5 seconds.
🔌 Pinout & Connection Diagram
This is a non-polarized 2-terminal SMD device. The mechanical drawing consists of a rectangular ceramic body with metallic end terminations for surface mounting. Dimensions: 1.6mm x 0.8mm (L x W).
🔄 Equivalent & Alternative Components
- Murata GRM188R71H153KA01D
- TDK C1608X7R1H153K
- Samsung CL10B153KB8NNNC
- KEMET C0603C153K5RACTU
❓ Frequently Asked Questions
What is the capacitance stability of the X7R dielectric over temperature?
The X7R dielectric is a stable Class II material, meaning its capacitance varies by no more than ±15% over the entire temperature range from -55°C to +125°C.
Can this capacitor be used with lead-free soldering processes?
Yes, the component is RoHS compliant and designed with high thermal resistance to support the higher temperatures required for lead-free reflow and wave soldering.
Why is the monolithic structure important for high-voltage reliability?
The monolithic structure involves interleaved layers of ceramic and metal electrodes, which distributes electrical stress evenly and provides superior mechanical strength compared to other capacitor types.
