1600 Datasheet: 50V 200pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)
This 200pF 50V X7R MLCC is a high-reliability surface-mount component designed for stable performance in diverse electronic applications. Built with a monolithic laminated structure, it offers superior mechanical strength and electrical stability across its operating temperature range. The X7R dielectric ensures a predictable capacitance change of ±15% from -55°C to +125°C, making it ideal for decoupling and bypass functions. Its 0603 package size balances compact design with robust voltage handling, while its excellent solderability supports both reflow and wave soldering processes.

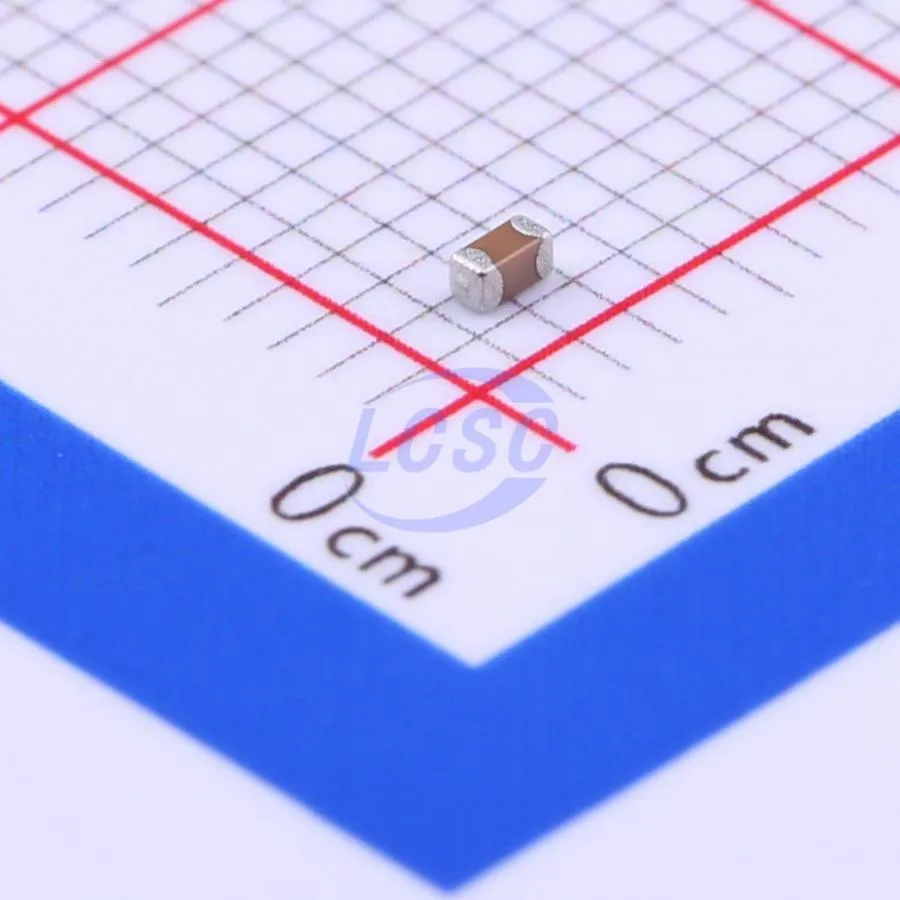

200pF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Max Current (Imax): Not specified
- Max Power (Pmax): Not specified
- Operating Temperature: -55°C to +125°C
Starting at
$0.0040296
✨ Key Features
Specialized high-voltage design for enhanced reliability; Monolithic laminated structure for high durability; Excellent solderability and resistance to soldering heat; Stable capacitance performance; Compatible with SMT (Surface Mount Technology) processes including reflow and wave soldering.
🎯 Applications
Analog and digital modems; LAN/WAN interface circuits; Lighting ballast and fluorescent starter circuits; Voltage multipliers and DC-DC converters; Backlighting inverters for displays; General high-voltage DC circuits.
⚡ Electrical Characteristics
Capacitance: 200pF; Tolerance: ±10% (K); Dielectric: X7R; Rated Voltage: 50V DC; Dissipation Factor: Standard for X7R (typically ≤ 2.5% at 1kHz).
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage (Vmax): 50V DC; Operating Temperature Range: -55°C to +125°C; Dielectric Withstanding Voltage: Typically 250% of rated voltage for 50V units (per standard testing methods).
🔌 Pinout & Connection Diagram
Two-terminal SMD/SMT package (0603 size). No specific pin polarity as ceramic capacitors are non-polarized components.
🔄 Equivalent & Alternative Components
- Murata GRM188R71H201KA01
- TDK C1608X7R1H201K
- Samsung CL10B201KB8NNNC
- KEMET C0603C201K5RACTU
❓ Frequently Asked Questions
What is the primary advantage of the X7R dielectric?
X7R is a Class II dielectric that provides a good balance between capacitance density and stability, with a predictable temperature coefficient of ±15% over a wide temperature range (-55°C to +125°C).
Can this 50V MLCC be used in high-voltage circuits mentioned in the datasheet?
While the datasheet covers a high-voltage series, this specific component is rated for 50V. It should only be used in circuits where the peak operating voltage does not exceed 50V to ensure long-term reliability.
Is this component compatible with lead-free soldering?
Yes, as indicated by its RoHS compliance and excellent soldering resistance, it is designed to withstand the higher temperatures associated with lead-free reflow and wave soldering.
