1613 Datasheet: 50V 3.3nF Capacitor – Samsung Electro-Mechanics
Capacitors — Manufactured by Samsung Electro-Mechanics

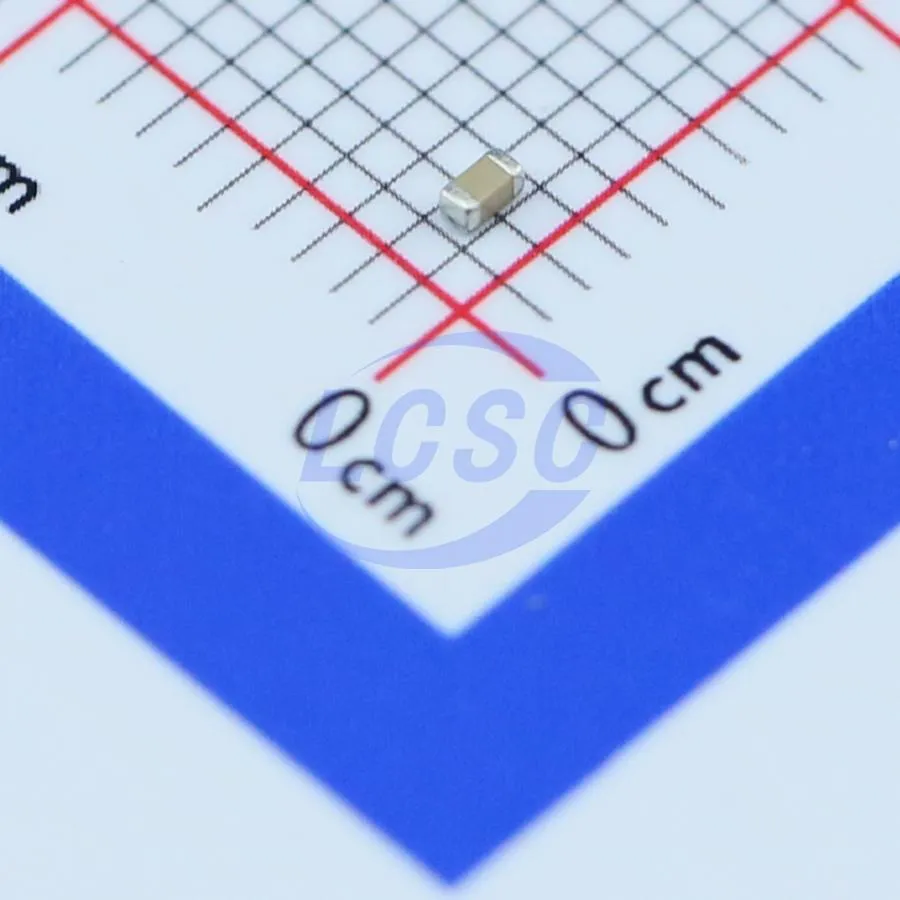

This 3.3nF Multilayer Ceramic Capacitor (MLCC) is a high-performance surface-mount component in a compact 0603 (1608 metric) package. Utilizing an X7R dielectric, it offers a stable capacitance with a predictable temperature coefficient of ±15% over its full operating range. Rated at 50V, it is ideal for general-purpose electronic applications such as decoupling, bypass, and filtering. The component’s main advantage is its balance of volumetric efficiency and reliability in harsh thermal environments. It is fully compliant with RoHS and REACH environmental directives.
3.3nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ X7R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ X7R Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0050667
✨ Key Features
Compact 0603 SMD footprint; Stable X7R dielectric performance; Ni/Sn termination for excellent solderability; RoHS and REACH compliant; Lead-free and halogen-free construction; High reliability in a wide temperature range.
🎯 Applications
Bypass and decoupling in power supply circuits; Signal filtering and smoothing; Coupling and DC blocking in communication devices; General consumer electronics; Industrial control modules.
⚡ Electrical Characteristics
Nominal Capacitance: 3.3nF; Rated Voltage: 50V DC; Dielectric Material: X7R (Class II); Capacitance Tolerance: ±10% (K code); Dissipation Factor: Standard for high-reliability MLCCs.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Two-terminal non-polarized surface mount device. Mechanical drawing consists of two end-terminations (Nickel barrier with 100% Tin plating) and a ceramic body.
🔄 Equivalent & Alternative Components
- Murata GRM188R71H332KA01
- TDK C1608X7R1H332K
- KEMET C0603C332K5RACTU
- Samsung CL10B332KB8NNNC
❓ Frequently Asked Questions
Does this capacitor have polarity?
No, MLCCs are non-polarized components and can be mounted in either direction on the PCB.
What does the X7R dielectric code mean?
X7R indicates that the capacitance will change no more than ±15% over the temperature range of -55°C to +125°C.
Is this part suitable for high-voltage applications?
This specific part is rated for 50V DC. For higher voltage requirements, please refer to the ‘Medium-High Voltage’ series in the manufacturer’s catalog.
