1615 Datasheet: 25V 330nF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

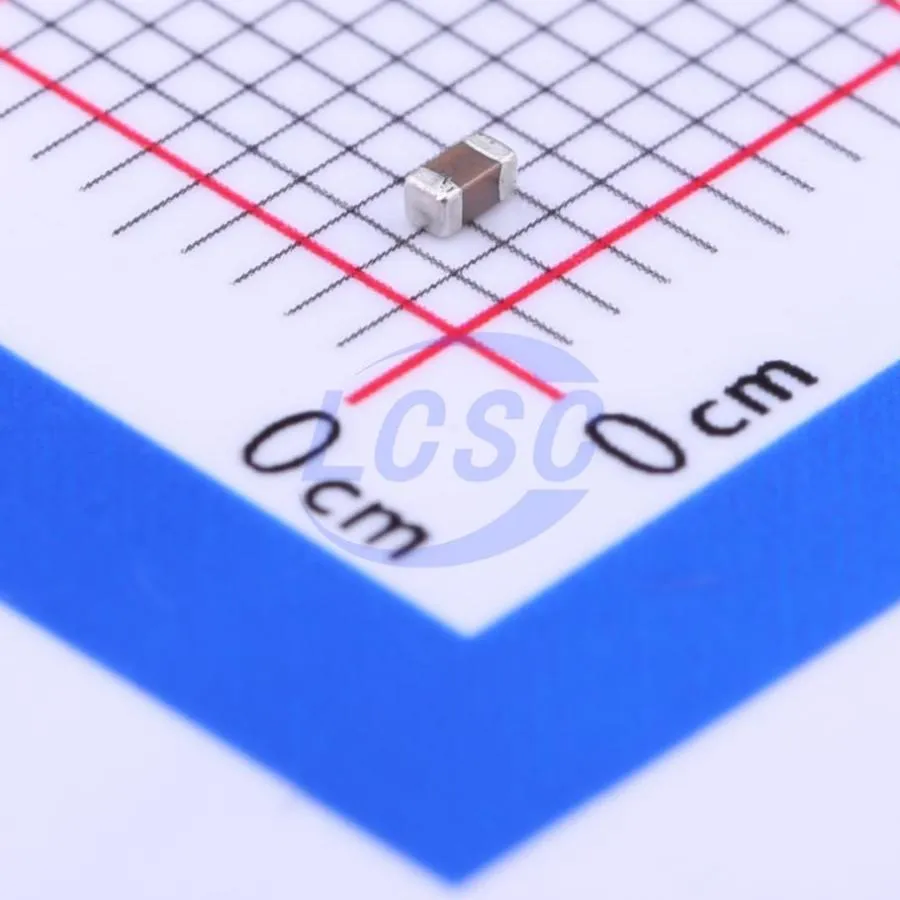

This 0603 surface-mount multilayer ceramic capacitor (MLCC) features a 330nF capacitance with a stable X7R dielectric, making it ideal for bypass and decoupling applications. Rated for 25V, it provides reliable performance across a wide temperature range of -55°C to +125°C with a ±10% tolerance. Its monolithic laminated structure ensures high mechanical strength and excellent electrical reliability in compact circuits. The component is designed for versatile assembly, supporting both reflow and wave soldering processes due to its robust termination finish.
25V 330nF X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ X7R MLCC
🌿 RoHS Compliant
⚙️ X7R MLCC
🌿 RoHS Compliant
- Max Voltage (Vmax): 25V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0120296
✨ Key Features
Monolithic structure for enhanced reliability; Excellent solderability and heat resistance; Compatible with reflow and wave soldering; High and stable capacitance over temperature; Complies with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modems; LAN/WAN interface circuits; Lighting ballast and starter circuits; Voltage multipliers; DC-DC converters; Backlighting inverter circuits.
⚡ Electrical Characteristics
Capacitance: 330nF; Tolerance: ±10% (K); Dielectric: X7R; Rated Voltage: 25V DC; Dissipation Factor (tan δ): ≤ 3.5% at 1kHz/1.0Vrms; Insulation Resistance: > 10 GΩ or 100 Ω-F, whichever is smaller.
⚠️ Absolute Maximum Ratings
Operating Temperature Range: -55°C to +125°C; Rated Voltage (WVDC): 25V; Dielectric Withstanding Voltage: 250% of rated voltage for 1 to 5 seconds; Maximum Capacitance Change (X7R): ±15% over the operating temperature range.
🔌 Pinout & Connection Diagram
Mechanical drawing: This is a 2-terminal passive SMD component. Terminations consist of a triple-layer structure (Silver or Copper / Nickel / Tin) to ensure stable soldering. Refer to 0603 (1608 Metric) package dimensions for PCB landing pattern design.
🔄 Equivalent & Alternative Components
- Murata GRM188R71E334KA01
- Samsung CL10B334KA8NNNC
- TDK C1608X7R1E334K080AC
- Yageo CC0603KRX7R8BB334
❓ Frequently Asked Questions
What is the stability of X7R dielectric compared to others?
X7R is a Class II dielectric that offers a balance between high capacitance and stability, with a predictable ±15% maximum change in capacitance over the -55°C to +125°C range.
Can this 25V capacitor be used in a 24V power rail?
While technically possible, it is standard engineering practice to leave more headroom (e.g., 20-50% derating) to account for voltage spikes and DC bias aging effects in X7R ceramics.
Is this component suitable for wave soldering?
Yes, the datasheet specifies that the component’s termination and structure are designed to withstand the thermal shock of both reflow and peak (wave) soldering.
