1609 Datasheet: 50V 2.7nF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

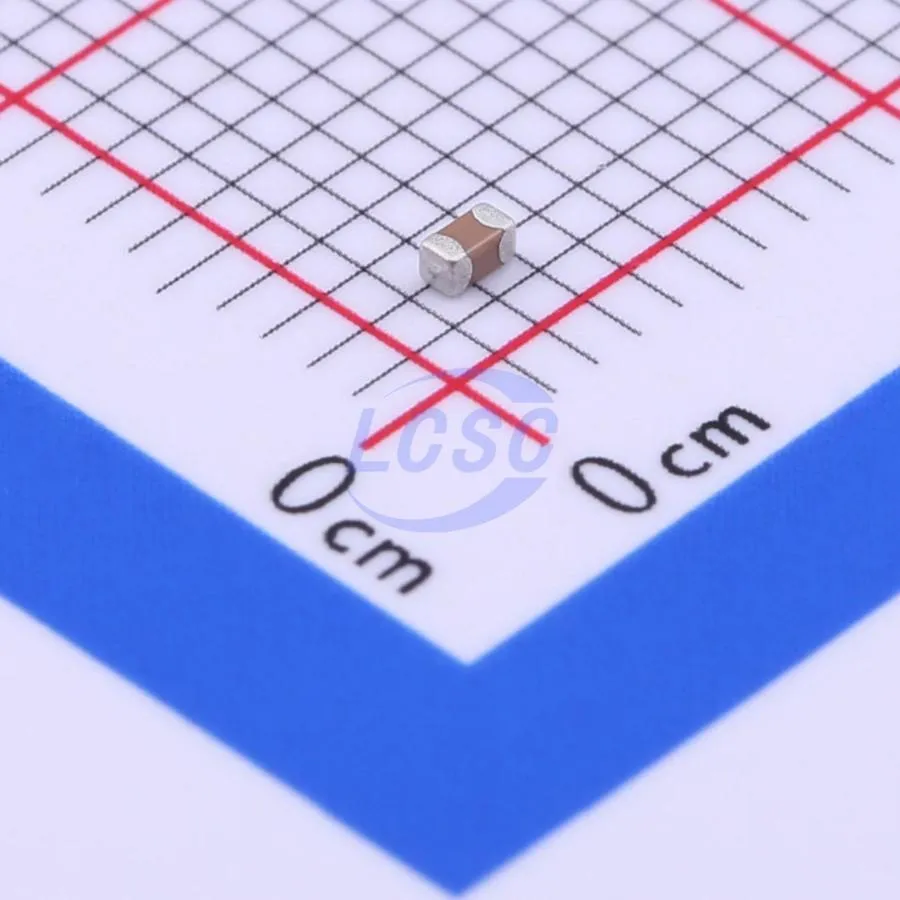

This 2.7nF Multilayer Ceramic Capacitor (MLCC) is housed in a standard 0603 (1608 Metric) SMD package and utilizes an X7R dielectric. It is designed with a high-reliability monolithic structure that offers excellent stability across a wide temperature range of -55°C to +125°C. The component is optimized for surface mount technology, supporting both reflow and wave soldering processes. Its primary advantage is providing a balance of high capacitance density and reliable performance for general-purpose electronic applications. This capacitor is ideal for decoupling and filtering in circuits where space and thermal stability are critical.
2.7nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ MLCC (Multilayer Ceramic Capacitor)
🌿 RoHS Compliant
⚙️ MLCC (Multilayer Ceramic Capacitor)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0030222
✨ Key Features
Monolithic laminated structure for high reliability; Excellent solderability and resistance to soldering heat; Suitable for both reflow and wave (peak) soldering; Stable capacitance performance; Class II dielectric material with high dielectric constant; RoHS compliant.
🎯 Applications
General electronic circuits; Filtering and DC-blocking; Coupling and decoupling; Bypassing; Harmonic vibration and resonance circuits; High-frequency signal processing.
⚡ Electrical Characteristics
Nominal Capacitance: 2.7nF (272); Rated Voltage: 50V DC; Capacitance Tolerance: ±10% (K); Dielectric Type: X7R (Class II); Temperature Coefficient: ±15% max change over operating range.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
2-terminal Surface Mount Device (SMD); Non-polarized electrodes; 0603 EIA Package (1.60mm x 0.80mm).
🔄 Equivalent & Alternative Components
- Murata GRM188R71H272KA01
- Samsung CL10B272KB8NNNC
- TDK C1608X7R1H272K
- Yageo CC0603KRX7R9BB272
❓ Frequently Asked Questions
What does the X7R dielectric code mean?
X7R indicates a temperature-stable Class II dielectric where the capacitance varies by no more than ±15% over the temperature range of -55°C to +125°C.
Can this capacitor be used in power supply filtering?
Yes, it is highly suitable for DC-blocking, decoupling, and bypassing in power supply circuits within its 50V rating.
Is this component compatible with lead-free soldering?
Yes, the nickel barrier termination with a tin layer (Ni/Sn) makes it suitable for modern lead-free reflow and wave soldering processes.
