1570 Datasheet: 50V 30pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

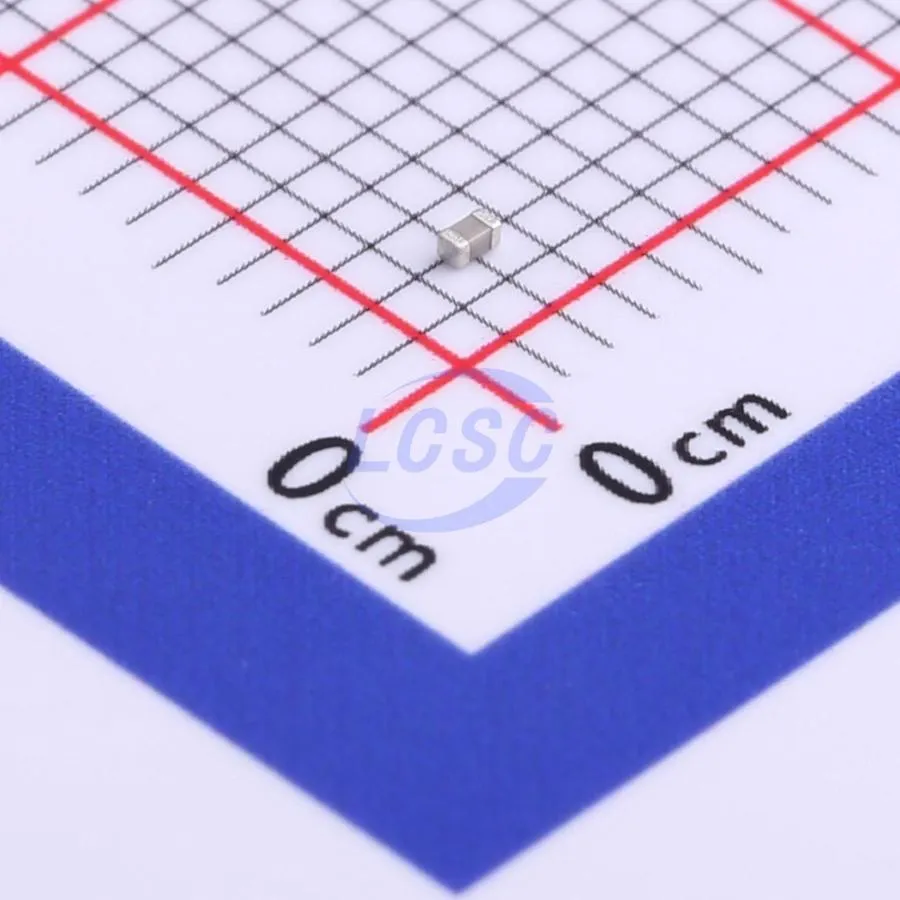

This 30pF Multilayer Ceramic Capacitor (MLCC) is a high-stability passive component designed for precision timing, filtering, and decoupling in electronic circuits. Featuring a C0G (NP0) dielectric, it maintains nearly zero capacitance drift across its wide operating temperature range of -55°C to +125°C. The compact 0402 package size and 50V rating make it ideal for high-density surface-mount assemblies where space and reliability are paramount. Its monolithic construction provides excellent mechanical strength and resistance to soldering heat, ensuring long-term durability. This component is particularly effective in high-frequency applications due to its low equivalent series resistance (ESR) and low dissipation factor.
30pF 50V C0G ±5% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0010963
✨ Key Features
Specialized design for stable high-voltage reliability in various DC circuits; Monolithic structure with laminated layers for enhanced reliability; Excellent solderability and resistance to soldering heat (suitable for both reflow and wave soldering); High and stable capacitance performance; Compliant with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modems; LAN/WAN interface circuits; Lighting ballast and startup circuits; Voltage multipliers; DC-DC converters; Back-lighting inverters.
⚡ Electrical Characteristics
Capacitance: 30pF; Rated Voltage: 50V DC; Dielectric Material: C0G (Class I); Tolerance: ±5%; Low dissipation factor and high insulation resistance typical of C0G ceramics.
⚠️ Absolute Maximum Ratings
Maximum Operating Voltage (Vmax): 50V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Mechanical drawing: 2-terminal Surface Mount Device (SMD). 0402 case size dimensions approximately 1.0mm x 0.5mm. Requires standard two-pad PCB footprint.
🔄 Equivalent & Alternative Components
- Murata GRM1555C1H300JA01
- TDK C1005C0G1H300J050BA
- Samsung CL05C300JB5NNNC
❓ Frequently Asked Questions
What are the benefits of the C0G (NP0) dielectric in this capacitor?
C0G is a highly stable Class I dielectric. It offers a near-zero temperature coefficient, meaning capacitance remains constant regardless of temperature changes, and it does not suffer from aging or significant voltage dependency.
Is this component suitable for high-frequency RF applications?
Yes, due to its low ESR and stable C0G dielectric, it is excellent for high-frequency filtering, impedance matching, and resonant circuit applications.
