1562 Datasheet: 50V 33pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

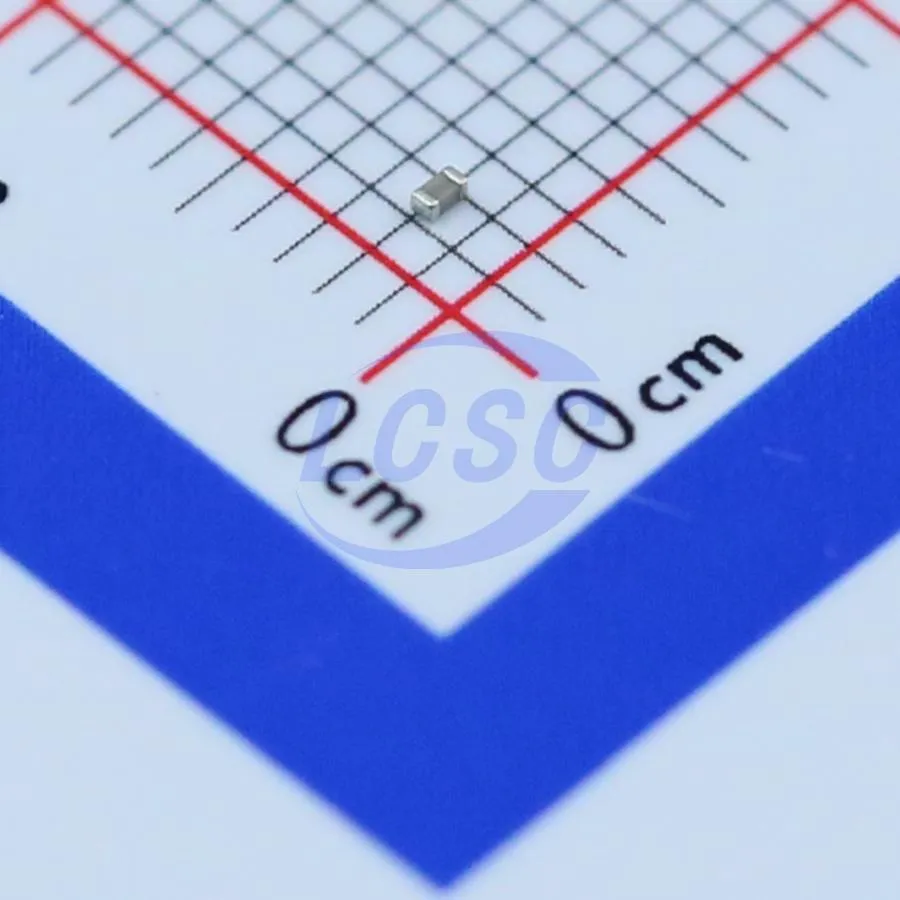

This 33pF Multilayer Ceramic Capacitor (MLCC) utilizes a high-performance C0G dielectric, offering extreme stability for precision electronics. Housed in a compact 0402 surface-mount package, it is rated for a maximum operating voltage of 50V. The C0G material ensures that the capacitance remains nearly constant regardless of changes in temperature, voltage, or time. Its monolithic laminated structure provides high reliability and is fully compatible with both reflow and wave soldering techniques. This component is specifically engineered for low-loss and high-stability requirements in sensitive high-frequency circuits.
33pF 50V C0G ±5% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
⚙️ C0G (NP0) MLCC
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Max Current (Imax): Not specified
- Max Power (Pmax): Not specified
- Operating Temperature: -55°C to +125°C
Starting at
$0.0010519
✨ Key Features
Monolithic laminated structure for high reliability; Excellent solderability and resistance to soldering heat; Suitable for reflow and wave soldering; High and stable capacitance; Class I dielectric (C0G) with minimal drift over temperature, voltage, and time.
🎯 Applications
High-frequency electronic circuits; Filtering and coupling applications; Resonant circuits and harmonic vibration; Bypassing in RF and signal processing modules.
⚡ Electrical Characteristics
Capacitance: 33pF; Rated Voltage: 50V; Dielectric: C0G (NP0); Capacitance Tolerance: ±5% (J); Temperature Coefficient: 0 ± 30 ppm/°C.
⚠️ Absolute Maximum Ratings
Maximum Rated Voltage: 50V DC; Operating Temperature Range: -55°C to +125°C; Storage Temperature Range: -55°C to +125°C.
🔌 Pinout & Connection Diagram
Mechanical drawing (0402 / 1005 Metric): Length 1.00 ± 0.05mm, Width 0.50 ± 0.05mm, Thickness 0.50 ± 0.05mm. Termination consists of a Nickel barrier with a Tin plating layer (Nickel Barrier Termination) for reliable surface mounting.
🔄 Equivalent & Alternative Components
- Murata GRM1555C1H330JA01
- TDK C1005C0G1H330J
- Samsung CL05C330JB5NNNC
- Yageo CC0402JRNPO9BN330
❓ Frequently Asked Questions
Why is the C0G dielectric preferred for high-frequency applications?
C0G (also known as NP0) is a Class I material that provides ultra-stable performance with negligible changes in capacitance due to temperature, voltage, or aging, making it perfect for frequency-selective circuits.
Is this component compatible with lead-free soldering processes?
Yes, it features a Tin (Sn) over Nickel (Ni) barrier termination, making it suitable for standard lead-free reflow and wave soldering while meeting RoHS requirements.
