1561 Datasheet: 50V 2.7pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)
This 0402 surface-mount multilayer ceramic capacitor (MLCC) features a C0G (NP0) dielectric, providing ultra-stable performance with minimal capacitance drift over temperature and voltage changes. Rated at 50V with a capacitance of 2.7pF, it is engineered for high-precision electronics where low loss and high stability are paramount. The component utilizes a monolithic laminated structure to ensure high reliability and robust mechanical integrity during assembly. Its primary advantage lies in its excellent high-frequency characteristics and high insulation resistance, making it ideal for sensitive analog and digital circuits.

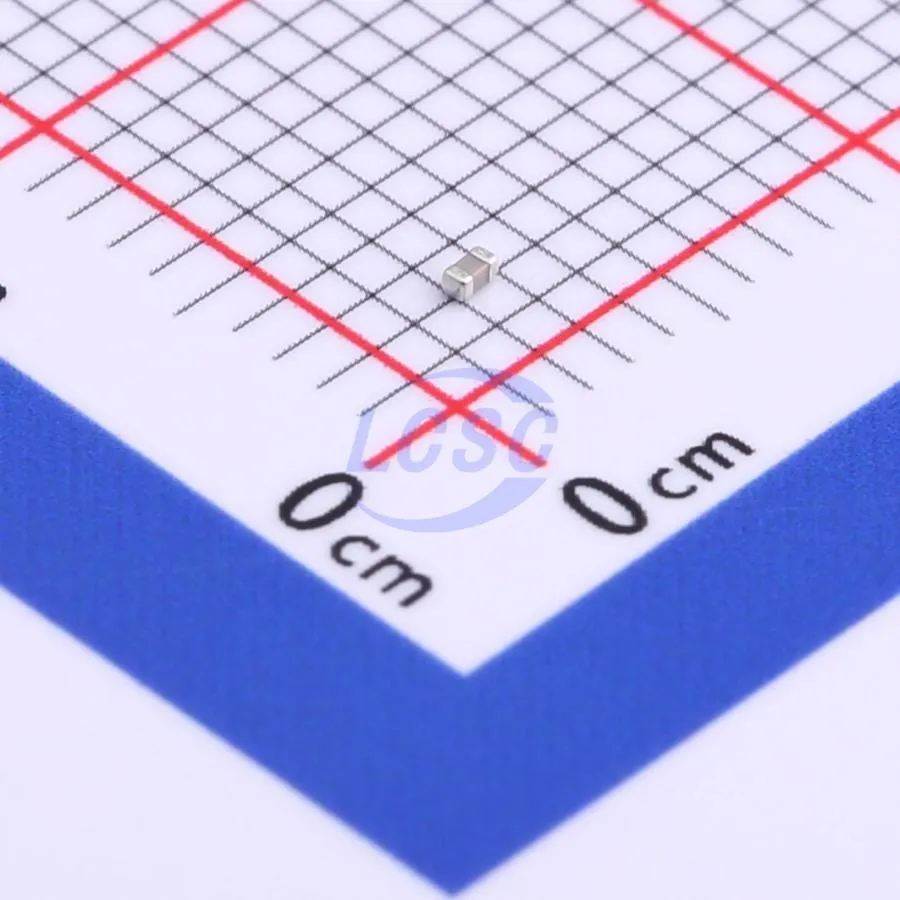

2.7pF 50V C0G 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0402
⚙️ C0G (NP0)
🌿 RoHS Compliant
⚙️ C0G (NP0)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: -55°C to +125°C
Starting at
$0.0010963
✨ Key Features
Monolithic laminated structure for superior reliability; Excellent solderability and thermal resistance suitable for reflow and wave soldering; High and stable capacitance across operating conditions; Specially designed for high-voltage reliability in compact footprints; Compliant with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog and digital modems; LAN/WAN interface isolation; Lighting ballast and starter circuits; Voltage multipliers; DC-DC converters; Back-lighting inverters for LCD displays; High-frequency coupling and decoupling.
⚡ Electrical Characteristics
Capacitance: 2.7pF; Dielectric: C0G (NP0) Class I; Rated Voltage: 50V DC; Capacitance Tolerance: Typically ±0.1pF or ±0.25pF (refer to specific ordering code); Dissipation Factor (Q): Very high (Low loss); Insulation Resistance: >10GΩ.
⚠️ Absolute Maximum Ratings
Maximum Operating Temperature: +125°C; Minimum Operating Temperature: -55°C; Rated Working Voltage: 50V DC; Dielectric Withstanding Voltage: Typically 250% of rated voltage for short durations.
🔌 Pinout & Connection Diagram
2-terminal SMD/SMT package (Standard 0402 / 1005 metric). Non-polarized device. Terminals consist of a barrier layer (typically Nickel) and a solderable finish (typically Tin).
🔄 Equivalent & Alternative Components
- Murata GRM1555C1H2R7CZ01D
- TDK C1005C0G1H2R7C
- Samsung CL05C2R7CB5NNNC
- Kemet C0402C279C5GACTU
❓ Frequently Asked Questions
Why is C0G preferred over X7R for this 2.7pF capacitor?
C0G (NP0) is a Class I dielectric that offers much higher stability. Its capacitance does not change with temperature or applied DC voltage, which is critical for the low-picofarad values used in precision timing and RF circuits.
Can this capacitor be used in high-voltage pulse applications?
While part of the ‘High Voltage’ series, this specific 50V model is rated for standard DC operation. For high-voltage pulses, ensure the peak voltage does not exceed the dielectric withstanding limits and check the dV/dt ratings.
