18229 Datasheet: 16V Amplifier – onsemi

Published date

Last modified date

Author

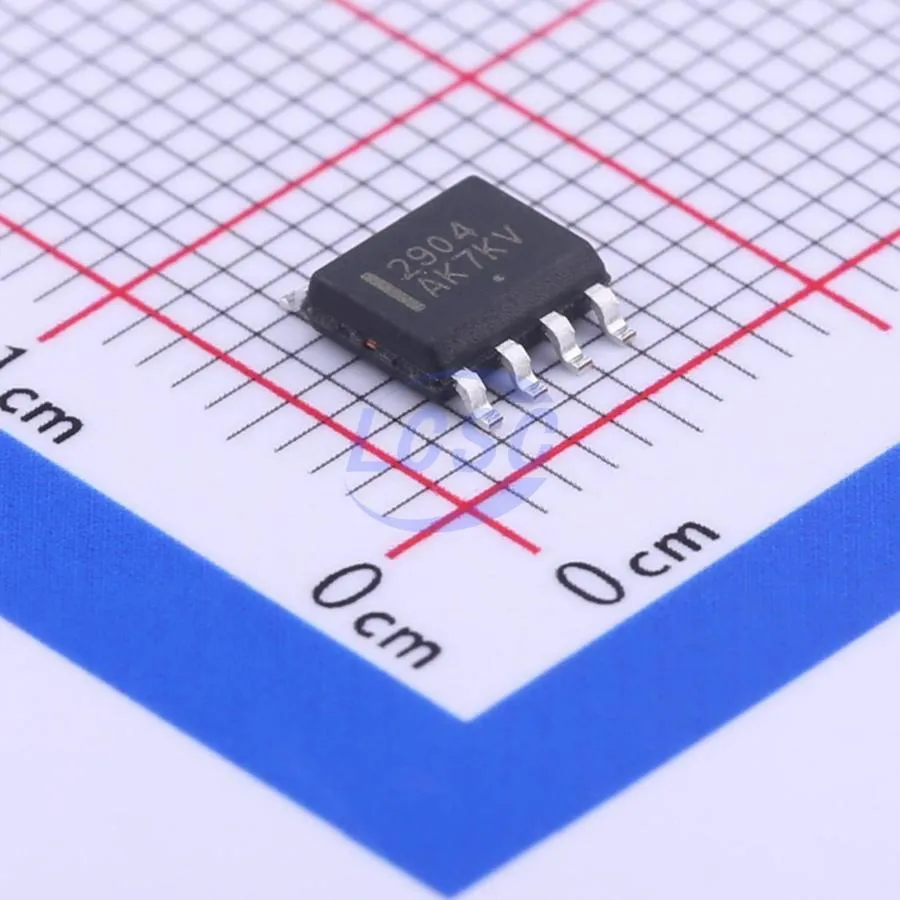

Component 18229

Amplifiers — Manufactured by onsemi

The LM358/LM2904 series consists of two independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. These amplifiers are particularly suited for applications where the common-mode input voltage range includes ground, eliminating the need for external biasing in many circuits. They feature low power consumption and stable operation across a broad temperature range, making them an industry-standard choice for general-purpose analog signal processing. The device is robust, offering short-circuit protection and the flexibility to operate from either single or split power supplies.

-16V~16V -40℃~+105℃ 1.5mA 10pA/℃ 2 2mV 32V 3V~32V 40mA 45nA 50nA 70dB 7uV/℃ SOIC-8 Operational Amplifier ROHS

📦 SOIC-8
⚙️ Dual Operational Amplifier
🌿 RoHS Compliant
  • Max Voltage (Vmax): 16V
  • Max Current (Imax): 40mA
  • Max Power (Pmax): 500mW – 800mW
  • Operating Temperature: -40°C to +105°C
Starting at

$0.0706667

🛒 Buy on JLCPCB

✨ Key Features

Single supply operation from 3.0 V to 32 V; True differential input stage; Short circuit protected outputs; Internally compensated for stability; Low input bias currents; Common mode range extends to the negative supply (ground); ESD clamps on inputs for increased ruggedness; Available in automotive-qualified versions (NCV prefix); Pb-Free, Halogen-Free, and RoHS compliant.

🎯 Applications

Transducer amplifiers; DC gain blocks; Conventional operational amplifier circuits; Automotive control systems; Battery-powered portable equipment; Voltage regulators and power supply monitoring.

⚡ Electrical Characteristics

Input Offset Voltage: 2.0 mV (typical); Input Bias Current: 45 nA (typical); Quiescent Current: 1.5 mA (total for both amplifiers); Common Mode Rejection Ratio (CMRR): 70 dB to 85 dB; Power Supply Rejection Ratio (PSRR): 100 dB; Channel Separation: 120 dB from 1 kHz to 20 kHz; Large Signal Open Loop Voltage Gain: 100 V/mV.

⚠️ Absolute Maximum Ratings

Supply Voltage (Vcc): 32 V (Single) or ±16 V (Split); Input Differential Voltage Range: ±32 V; Input Common Mode Voltage Range: -0.3 V to 32 V; Maximum Junction Temperature: 150°C; Storage Temperature Range: -65°C to +150°C; ESD Protection (HBM): 2000 V.

🔌 Pinout & Connection Diagram

Pin 1: Output 1; Pin 2: Inverting Input 1; Pin 3: Non-inverting Input 1; Pin 4: VEE / Ground; Pin 5: Non-inverting Input 2; Pin 6: Inverting Input 2; Pin 7: Output 2; Pin 8: VCC.

🔄 Equivalent & Alternative Components

  • LM358
  • LM2904
  • NE5532
  • RC4558
  • TL072
  • MC1458

❓ Frequently Asked Questions

Can this operational amplifier operate from a single 5V supply?

Yes, the LM358/LM2904 series is specifically designed for single-supply operation and can operate with a supply as low as 3.0V.

What is the main difference between the LM358 and the LM2904?

The primary difference is the operating temperature range; the LM2904 is rated for a wider range (-40°C to +105°C) suitable for industrial and automotive environments, whereas the LM358 is typically rated for commercial use (0°C to +70°C).

Does the input range include ground?

Yes, one of the distinct advantages of this amplifier is that its common-mode input voltage range includes the negative supply (ground), which simplifies biasing in single-supply applications.
