1622 Datasheet: 50V 47nF Capacitor – Samsung Electro-Mechanics

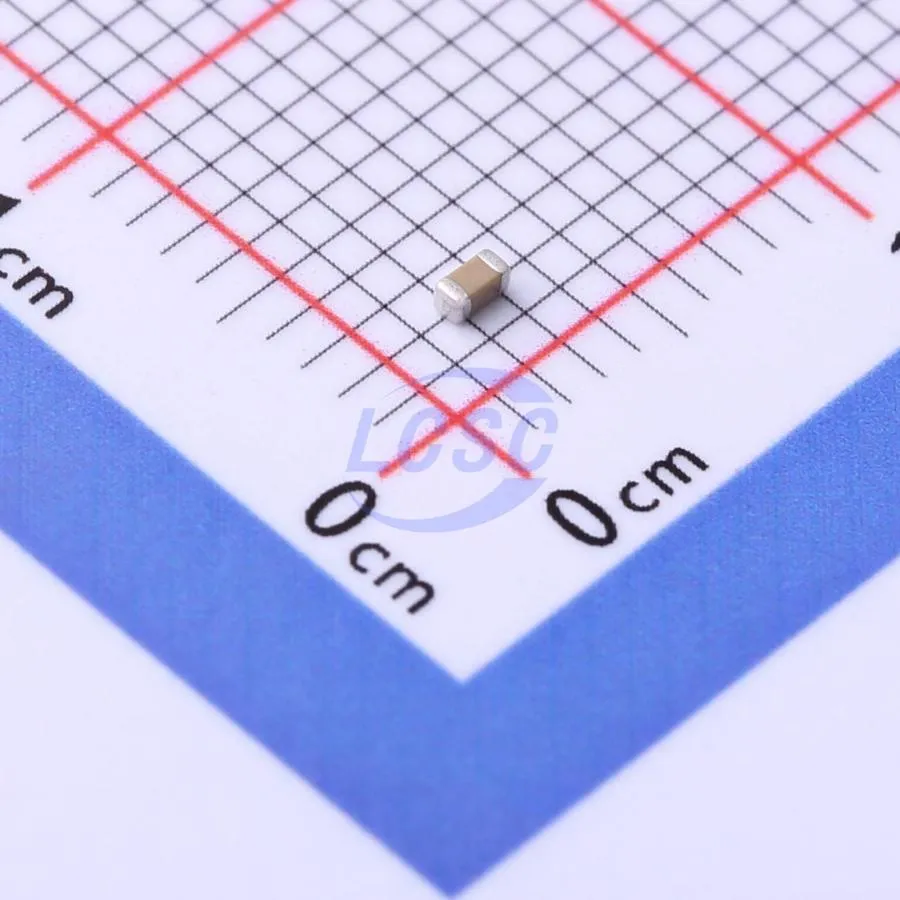

Component 1622

Capacitors — Manufactured by Samsung Electro-Mechanics

This Samsung Electro-Mechanics 47nF MLCC is a high-reliability surface-mount component designed for general-purpose electronic circuits. Utilizing the X7R dielectric, it offers a stable capacitance value across a wide temperature range, making it ideal for decoupling, filtering, and bypass applications. The 0603 package size provides an excellent balance between compact footprint and ease of assembly in automated SMT lines. Its compliance with RoHS and REACH standards ensures suitability for modern, environmentally conscious electronic designs.

47nF 50V X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS

📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC) – X7R
🌿 RoHS Compliant
  • Max Voltage (Vmax): 50V
  • Max Current (Imax): Not specified
  • Max Power (Pmax): Not specified
  • Operating Temperature: Not specified
Starting at

$0.0048593

🛒 Buy on JLCPCB

✨ Key Features

RoHS and REACH compliant; free from restricted materials like Cd, Pb, Hg, and Cr6+; manufactured without ozone-depleting substances; high-density surface mount design.

🎯 Applications

General electronic circuit decoupling, signal filtering, bypass applications, and power supply smoothing.

⚡ Electrical Characteristics

Capacitance: 47nF; Tolerance: ±10%; Rated Voltage: 50V; Dielectric: X7R.

⚠️ Absolute Maximum Ratings

Rated Voltage: 50V. Operating temperature and current ratings are dependent on specific circuit conditions and dielectric characteristics.

🔌 Mechanical drawing & Connection Diagram

Non-polarized surface mount component with two metallic terminations.

🔄 Equivalent & Alternative Components

  • Murata GRM188R71H473KA01D
  • TDK C1608X7R1H473K080AA

❓ Frequently Asked Questions

What does the X7R dielectric signify?

X7R is a Class II dielectric material that provides a stable capacitance change over a temperature range of -55°C to +125°C, typically within ±15%.

Is this capacitor polarized?

No, MLCCs are non-polarized components and can be installed in either orientation on the PCB.
