1546 Datasheet: 50V 100pF Capacitor – FH (Guangdong Fenghua)

Published date

Last modified date

Author

Component 1546

Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

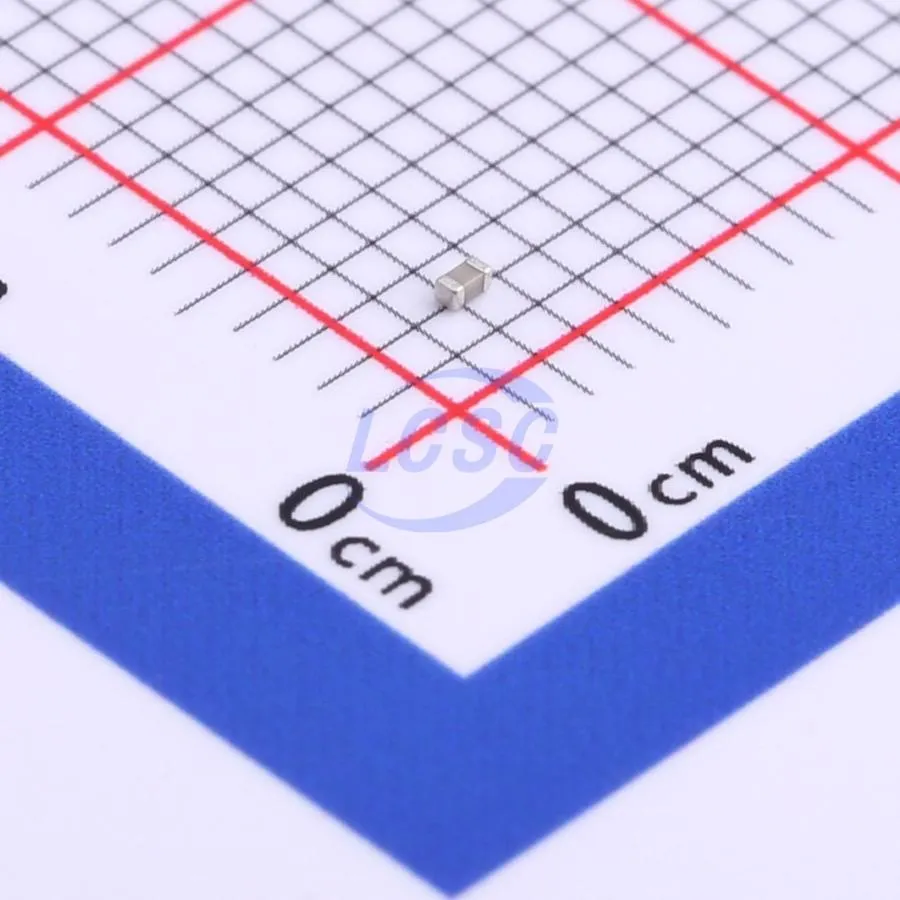

This 100pF Multilayer Ceramic Capacitor (MLCC) is housed in a compact 0402 surface-mount package, making it ideal for high-density PCB designs. Utilizing a C0G (NP0) dielectric, it provides industry-leading stability with nearly zero capacitance drift regardless of changes in temperature, voltage, or time. Rated for 50V operation, this Class I capacitor is engineered for high-precision applications requiring low dielectric loss. Its robust monolithic structure and nickel-barrier termination ensure high reliability and excellent solderability in both reflow and wave soldering processes.

100pF 50V C0G ±5% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS

📦 0402
⚙️ C0G (NP0) Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
  • Max Voltage (Vmax): 50V
  • Operating Temperature: -55°C to +125°C
Starting at

$0.0010519

🛒 Buy on JLCPCB

✨ Key Features

Monolithic laminated structure for high reliability; Excellent solderability and resistance to soldering heat; Stable capacitance performance; Class I dielectric (C0G) with high frequency stability; Compatible with reflow and wave soldering.

🎯 Applications

High-frequency electronic circuits; Filtering and bypassing; Coupling and decoupling; Resonant and harmonic vibration circuits.

⚡ Electrical Characteristics

Capacitance: 100pF; Dielectric: C0G (NP0); Capacitance Tolerance: ±5% (Code J); Temperature Coefficient: 0 ± 30 ppm/°C; Rated Voltage: 50V.

⚠️ Absolute Maximum Ratings

Operating Temperature Range: -55°C to +125°C; Rated Voltage (VDC): 50V; Dielectric Withstanding Voltage: Typically 2.5x rated voltage.

🔌 Pinout & Connection Diagram

Standard 0402 SMD package (1.00mm x 0.50mm); 2-terminal non-polarized device; Terminations feature a multi-layer structure consisting of Inner Electrode, Substrate Electrode, Nickel (Ni) Barrier, and Tin (Sn) finish.

🔄 Equivalent & Alternative Components

  • Samsung CL05C101JB5NNNC
  • Murata GRM1555C1H101JA01D
  • TDK C1005C0G1H101J050BA
  • Walsin 0402N101J500CT

❓ Frequently Asked Questions

What is the primary advantage of the C0G dielectric used in this MLCC?

The C0G (NP0) dielectric is a Class I material that offers the highest stability. Its capacitance does not change significantly with temperature, voltage, or aging, making it perfect for precision timing and frequency-selective circuits.

Can this capacitor be used in power-sensitive high-frequency circuits?

Yes, due to its low dissipation factor and high stability, it is specifically recommended for low-loss, high-stability requirement circuits such as high-frequency filters.

Is the 0402 package compatible with wave soldering?

Yes, the datasheet specifies that the component’s structure and termination materials are suitable for both reflow soldering and peak (wave) soldering.
