1542 Datasheet: 50V 6.8nF Capacitor – FH (Guangdong Fenghua)

Published date

Last modified date

Author

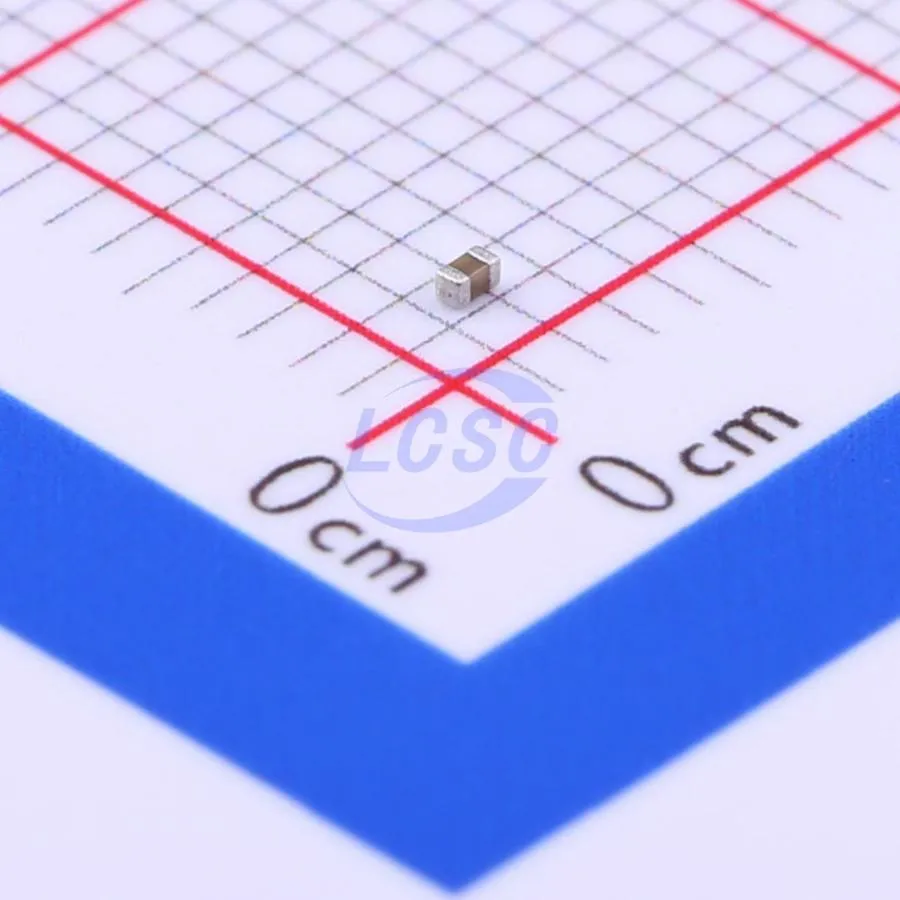

Component 1542

Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

This 0402-sized Multilayer Ceramic Capacitor (MLCC) is a high-reliability component featuring X7R dielectric technology, ensuring stable performance across a wide temperature range. With a 6.8nF capacitance and a 50V rating, it is designed using specialized processes to enhance durability in high-voltage DC circuits. Its monolithic structure provides excellent mechanical strength, while its termination finish is optimized for both reflow and wave soldering. The primary advantage of this Fenghua series is its compact footprint combined with robust high-voltage reliability, making it ideal for high-density SMT assemblies.

50V 6.8nF X7R ±10% 0402 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS

📦 0402
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
  • Max Voltage (Vmax): 50V
  • Max Current (Imax): Not Specified
  • Max Power (Pmax): Not Specified
  • Operating Temperature: -55°C to +125°C
Starting at

$0.0010963

🛒 Buy on JLCPCB

✨ Key Features

Special high-voltage design for enhanced reliability; Monolithic structure for high durability and stability; Excellent solderability and resistance to soldering heat; Compatible with reflow and wave soldering processes; High and stable capacitance performance; Complies with GB/T 21041-2007 and GB/T 21042-2007 standards.

🎯 Applications

Analog and digital modems; LAN/WAN interface modules; Lighting ballast and starter circuits; Voltage multipliers; DC-DC converters; LCD back-lighting inverters.

⚡ Electrical Characteristics

Capacitance: 6.8nF; Tolerance: ±10% (K); Dielectric: X7R; Rated Voltage: 50V; Dissipation Factor: Typical for X7R series; Insulation Resistance: High reliability monolithic layers.

⚠️ Absolute Maximum Ratings

Maximum Operating Voltage: 50V DC; Temperature Characteristic: X7R (-55°C to +125°C with ΔC ±15% max); Suitable for standard industrial and commercial thermal environments.

🔌 Pinout & Connection Diagram

2-terminal SMD (Surface Mount Device) 0402 package. Symmetrical, non-polarized terminals for easy PCB placement.

🔄 Equivalent & Alternative Components

  • Samsung CL05B682KB5NNNC
  • Murata GRM155R71H682KA01D
  • TDK C1005X7R1H682K050BA
  • KEMET C0402C682K5RACTU

❓ Frequently Asked Questions

What does the X7R dielectric signify for this capacitor?

X7R is a ‘temperature stable’ ceramic dielectric. It operates from -55°C to +125°C with a maximum capacitance change of ±15% over that range, making it suitable for bypass and decoupling applications where stability is required.

Can this 0402 capacitor be used in automated assembly?

Yes, it is specifically designed for SMT (Surface Mount Technology) and is compatible with high-speed automated placement equipment and standard soldering profiles like reflow and wave soldering.

Why is this described as a ‘High Voltage’ series if it is rated for 50V?

While 50V is standard for many MLCCs, this specific product line from Fenghua uses a specialized ‘High Voltage’ design architecture intended to provide superior reliability and breakdown resistance compared to general-purpose MLCCs of the same rating.
