71035 Datasheet: 15V Amplifier – STMicroelectronics

Published date

Last modified date

Author

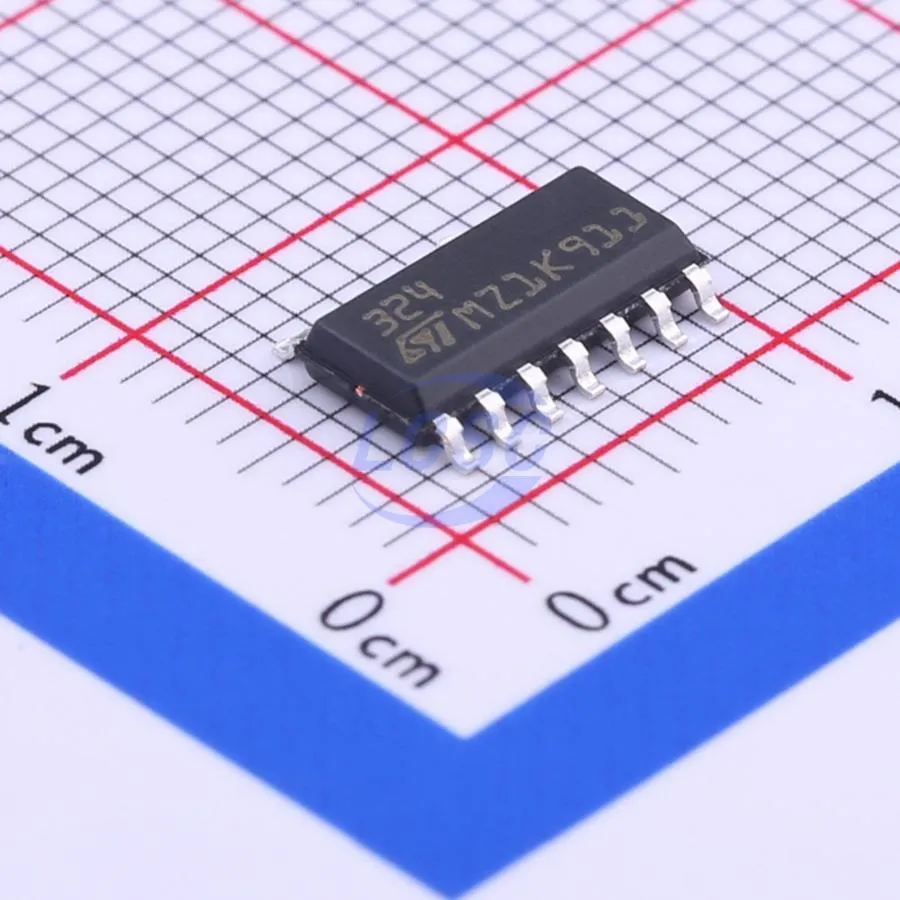

Component 71035

Amplifiers — Manufactured by STMicroelectronics

The LM124/LM224/LM324 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers. These devices are designed to operate from a single power supply over a wide voltage range, though they also support split-supply configurations. A key advantage is their low power consumption, which remains independent of the supply voltage magnitude. They are widely used in general-purpose signal conditioning and amplification applications due to their versatility and robust input common-mode range.

-15V~-1.5V、1.5V~15V 0℃~+70℃ 1.2mA 1.3MHz 200pA/℃ 20V/us 20nA 300nA 30V 30uV/℃ 3V~30V 4 40nV/√Hz@1kHz 5mV 70mA 80dB SOIC-14 Operational Amplifier ROHS

📦 SOIC-14
⚙️ Quad Operational Amplifier
🌿 RoHS Compliant
  • Max Voltage (Vmax): 32V
  • Max Current (Imax): 50mA
  • Max Power (Pmax): 400mW
  • Operating Temperature: 0°C to +70°C (LM324x series)
Starting at

$0.15

🛒 Buy on JLCPCB

✨ Key Features

1.3 MHz gain bandwidth, input common-mode range includes ground, 100 dB large voltage gain, 375 µA supply current per amplifier, 20 nA input bias current, and 3 mV maximum input offset voltage.

🎯 Applications

General-purpose signal amplification, sensor signal conditioning, active filters, and voltage follower circuits.

⚡ Electrical Characteristics

Supply voltage range: 3V to 30V (single) or ±1.5V to ±15V (dual). Input offset voltage: 3mV max. Input bias current: 20nA. Output short-circuit current: ~40mA.

⚠️ Absolute Maximum Ratings

Supply voltage (VCC): 32V or ±16V. Differential input voltage: 32V. Power dissipation: 400mW. Junction temperature: 150°C. Storage temperature: -65°C to 150°C.

🔌 Pinout & Connection Diagram

Available in SOIC-14, TSSOP14, and QFN16 3×3 packages. Pinout varies by package; QFN16 includes an exposed pad that can be connected to VCC- or left floating.

🔄 Equivalent & Alternative Components

  • LM2902
  • TSB572
  • TSB611

❓ Frequently Asked Questions

Can these op-amps operate with a single supply?

Yes, they are specifically designed to operate from a single power supply ranging from 3V to 30V.

What is the difference between the LM124, LM224, and LM324?

The prefixes refer to the operating temperature range, with the LM124 typically being the military/industrial grade and the LM324 being the commercial grade.
