1630 Datasheet: 50V 680pF Capacitor – FH (Guangdong Fenghua)
Capacitors — Manufactured by FH(Guangdong Fenghua Advanced Tech)

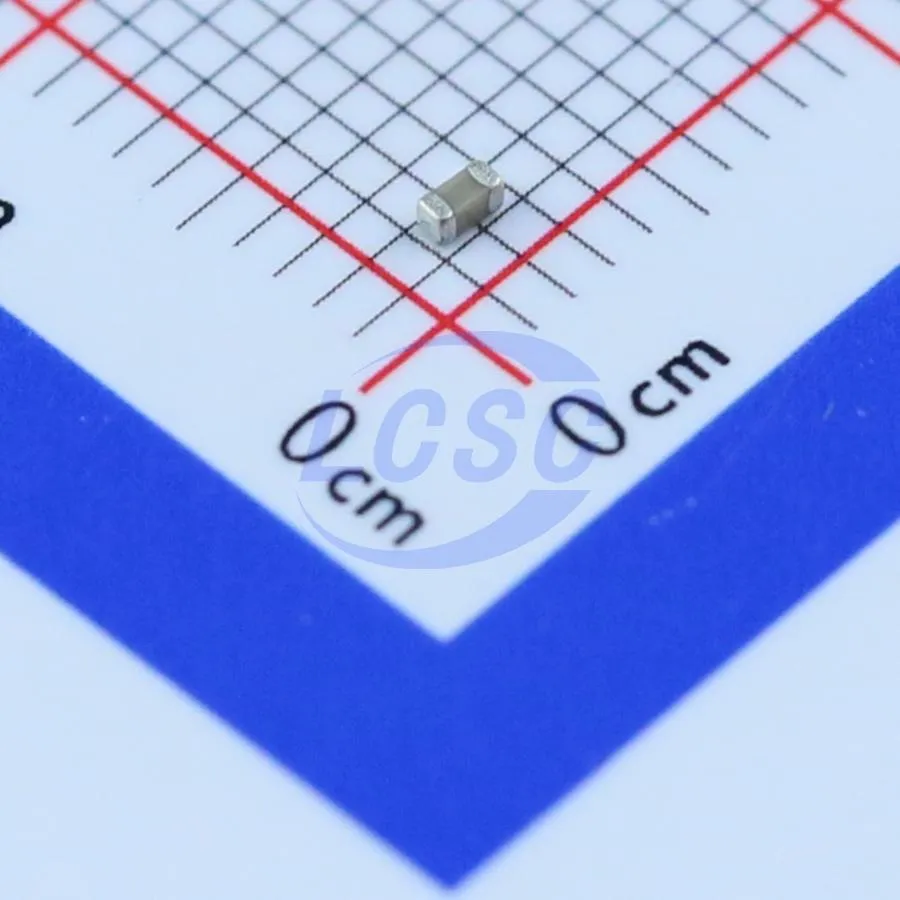

This component is a 680pF 50V X7R MLCC in an 0603 surface-mount package, designed for high-reliability applications. It utilizes a monolithic laminated structure that provides excellent stability and performance in high-voltage DC circuits. The capacitor is optimized for automated assembly, featuring high soldering resistance suitable for both reflow and wave soldering processes. Its X7R dielectric ensures stable capacitance over a wide temperature range, making it ideal for filtering and coupling in compact electronic designs.
50V 680pF X7R ±10% 0603 Multilayer Ceramic Capacitors MLCC – SMD/SMT ROHS
📦 0603
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
⚙️ Multilayer Ceramic Capacitor (MLCC)
🌿 RoHS Compliant
- Max Voltage (Vmax): 50V
- Operating Temperature: X7R
Starting at
$0.0028889
✨ Key Features
Monolithic laminated structure for high reliability; excellent soldering ability and resistance; stable capacitance performance; suitable for SMT; compliant with GB/T 21041-2007 and GB/T 21042-2007 standards.
🎯 Applications
Analog & digital modems, LAN/WAN interfaces, lighting ballast circuits, voltage multipliers, DC-DC converters, and back-lighting inverters.
⚡ Electrical Characteristics
Capacitance: 680pF; Tolerance: ±10%; Dielectric: X7R; Rated Voltage: 50V.
⚠️ Absolute Maximum Ratings
Rated voltage is 50V DC. Operating temperature characteristics follow X7R standards. High voltage reliability is maintained through specialized internal design.
🔌 Mechanical drawing & Connection Diagram
Surface mount component with two non-polarized terminations (0603 package size).
🔄 Equivalent & Alternative Components
- Murata GRM188R71H681KA01
- Samsung CL10B681KB8NNNC
❓ Frequently Asked Questions
What does the X7R temperature characteristic imply?
X7R is a stable dielectric that allows for a capacitance change of ±15% over the operating temperature range of -55°C to +125°C.
Can this 50V capacitor be used in lower voltage circuits?
Yes, this capacitor is rated for 50V and can be safely used in any circuit with a lower operating voltage, provided the physical size and capacitance requirements are met.
